Hantek 1008B 8 Channel PC Oscilloscope/DAQ/8CH Generator
89.00$

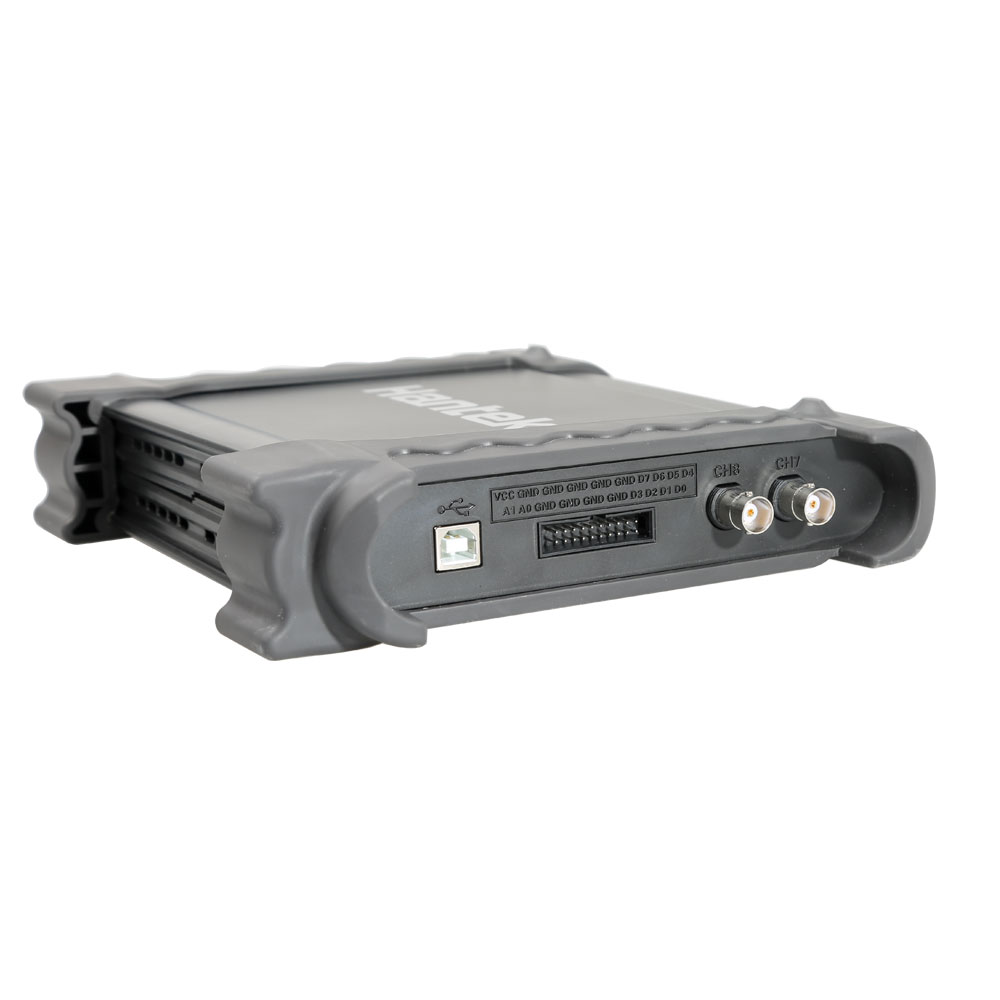

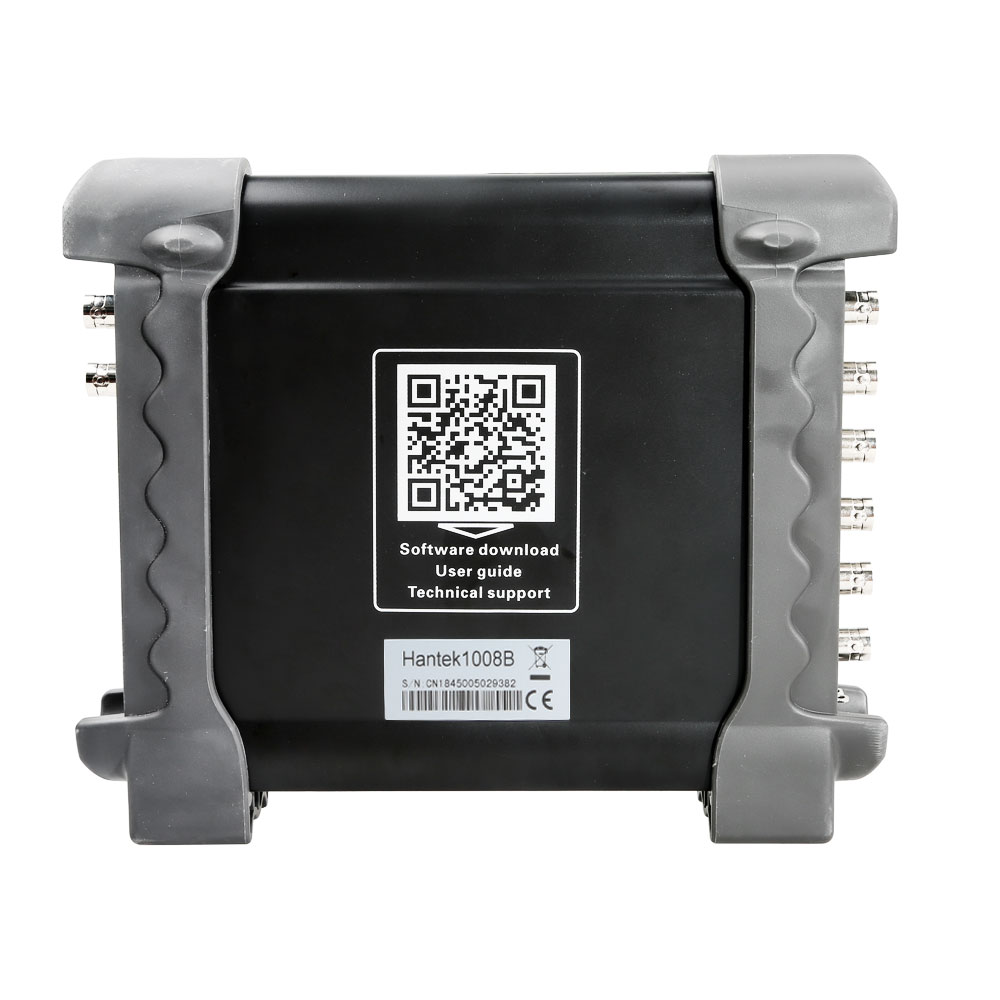

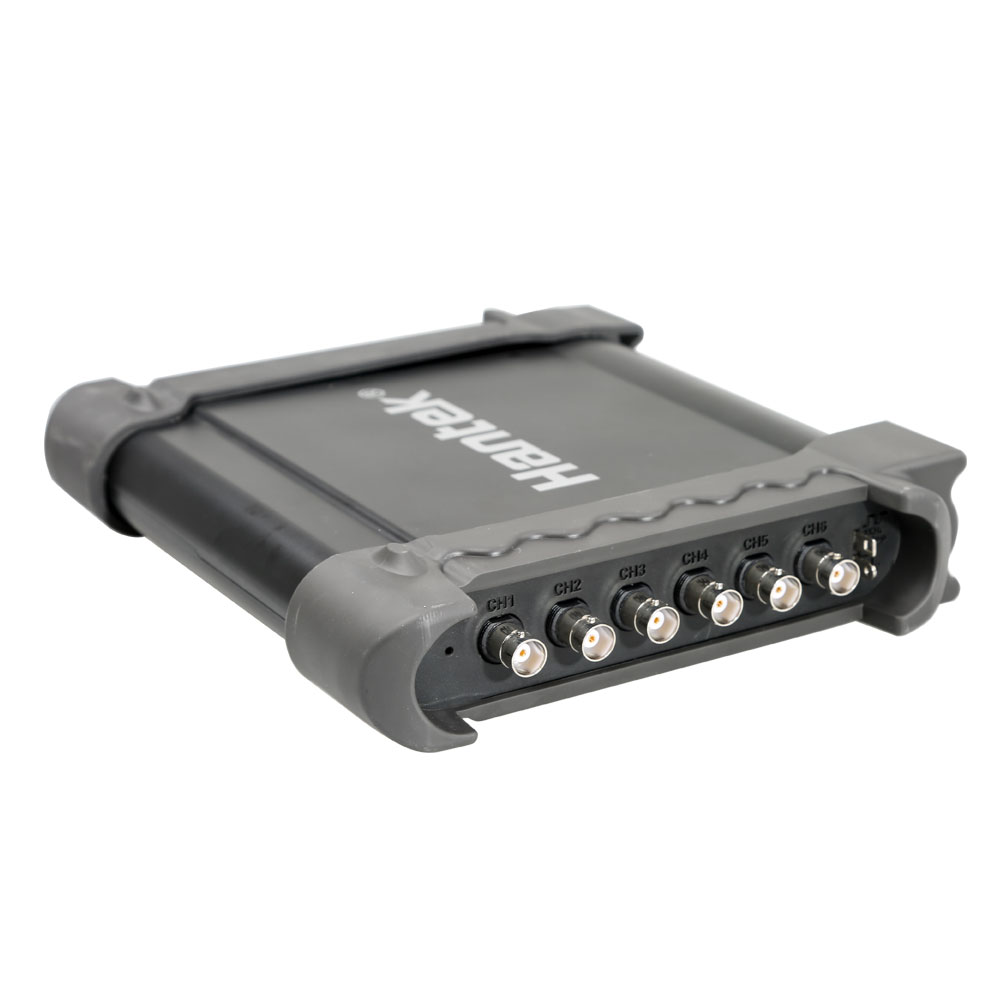

Hantek 1008B 8 Channel PC Oscilloscope/DAQ/8CH Generator
Hantek 1008B 8 Channel PC Oscilloscope/DAQ/8CH Generator
Hantek 1008B 8CH PC Oscilloscope/DAQ/8CH Generator:
1. Highly efficient and cost-effective; 8 channels oscilloscope for vehicle testing
2. 2.4MSa/s real time sampling rate, 12bit vertical resolution; DAQ card function
3. 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.
1) Oscilloscope
8 channels oscilloscope, 2.4MSa/s real time sampling rate
12 bits vertical resolution, spectrum analysis function
2) Programmable Generator
8 channels programmable generator
Can analog signals of crankshaft, camshaft etc.
3) Others
USB 2.0 interface plug and play, and no need extra power supply;
More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7, Windows 8.
Hantek 1008B Oscilloscope Functions List:
Set Oscilloscope
Set Vertical System
Set Horizontal System
Set Trigger System
Save/Load
Utility Function
Measure Signal
Display System
Waveform Generator
Zoom In/Out Waveforms
Acquisition
Print
Generate Square Waveform
|
Model |
Hantek1008 |
|
Oscilloscope Mode |
|
|
Vertical System |
|
|
Analog Channel |
8 |
|
Input Impedance |
Resistance: 1MΩ |
|
Input Sensitivity |
10mV/div to 5V/div |
|
Input Coupling |
DC |
|
Resolution |
12 bits |
|
Horizontal System |
|
|
Memory Depth |
4K |
|
Max. Input |
400V (DC+AC Peak) |
|
Real-Time Sampling Rate |
2.4MSa/s |
|
Time BaseRange |
1ns/div to 20000s/div(1-2-5sequences) |
|
Time Base Precision |
±50ppm |
|
Trigger System |
|
|
Time Base Range |
1ns/div to 20000s/div(1-2-5sequences) |
|
Time Base Precision |
±50ppm |
|
Trigger Source |
CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8 |
|
Trigger Mode |
Edge |
|
X-Y Mode |
|
|
X-Axis Input |
CH1 |
|
Y-Axis Input |
CH2 |
|
Cursors and Measurement |
|
|
Voltage Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot |
|
Time Measurement |
Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
|
Cursors Measurement |
Horizontal ,Vertical, Track, Auto Measure Modes |
|
Waveform Signal Process |
+,- , x,÷, FFT, Invert |
|
Voltage Range |
10mV to 5V/div @ x 1 probe |
|
Current Range |
100mA to50.0A/div @ CC65(20A) |
|
FFT |
Rectangular, Hanning, Hamming, Blackman Window |
|
Math |
Addition, subtraction, multiplication, division |
|
Programmable Generator |
|
|
Channel |
8 |
|
Output Level |
LVTTL |
|
Frequency Range |
0-250kHz |
|
Interface |
USB 2.0 |
|
Power |
No need extra power supply |
|
Size & Weight |
185 x 150 x 27 (mm); 0.35kg |

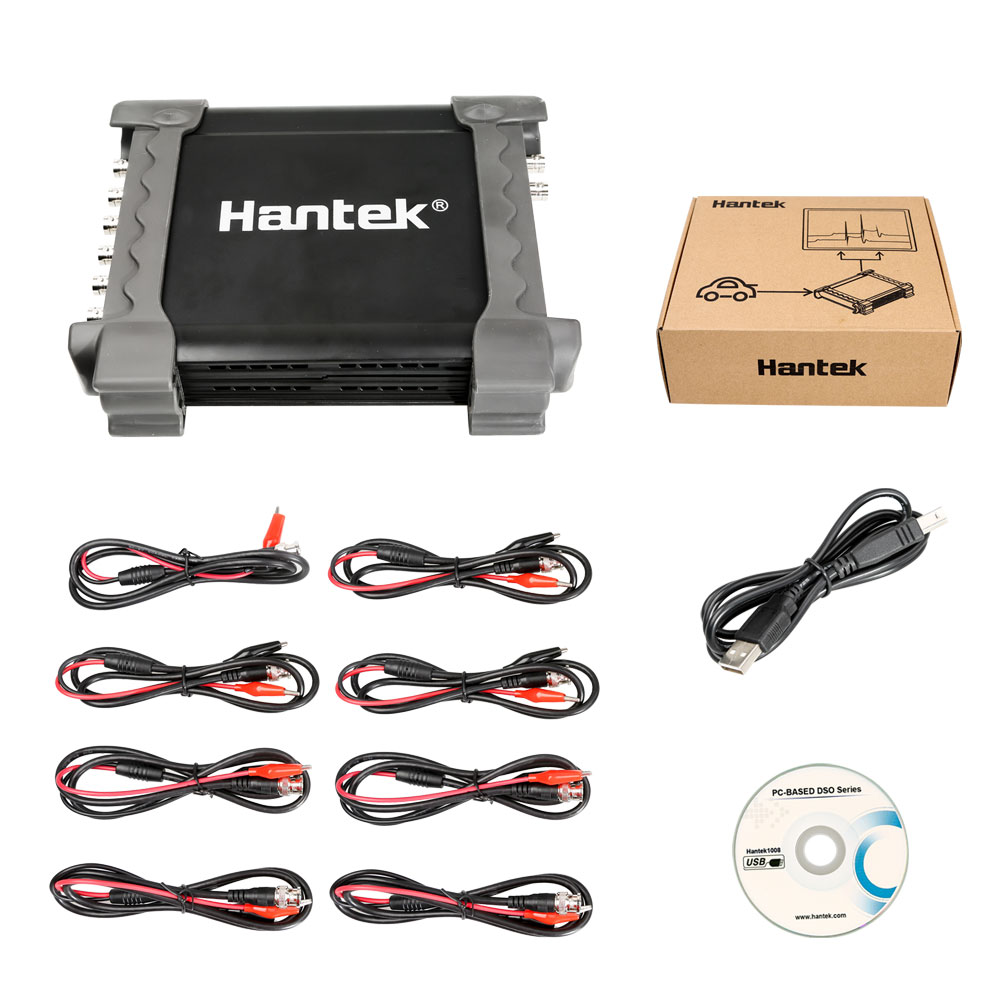

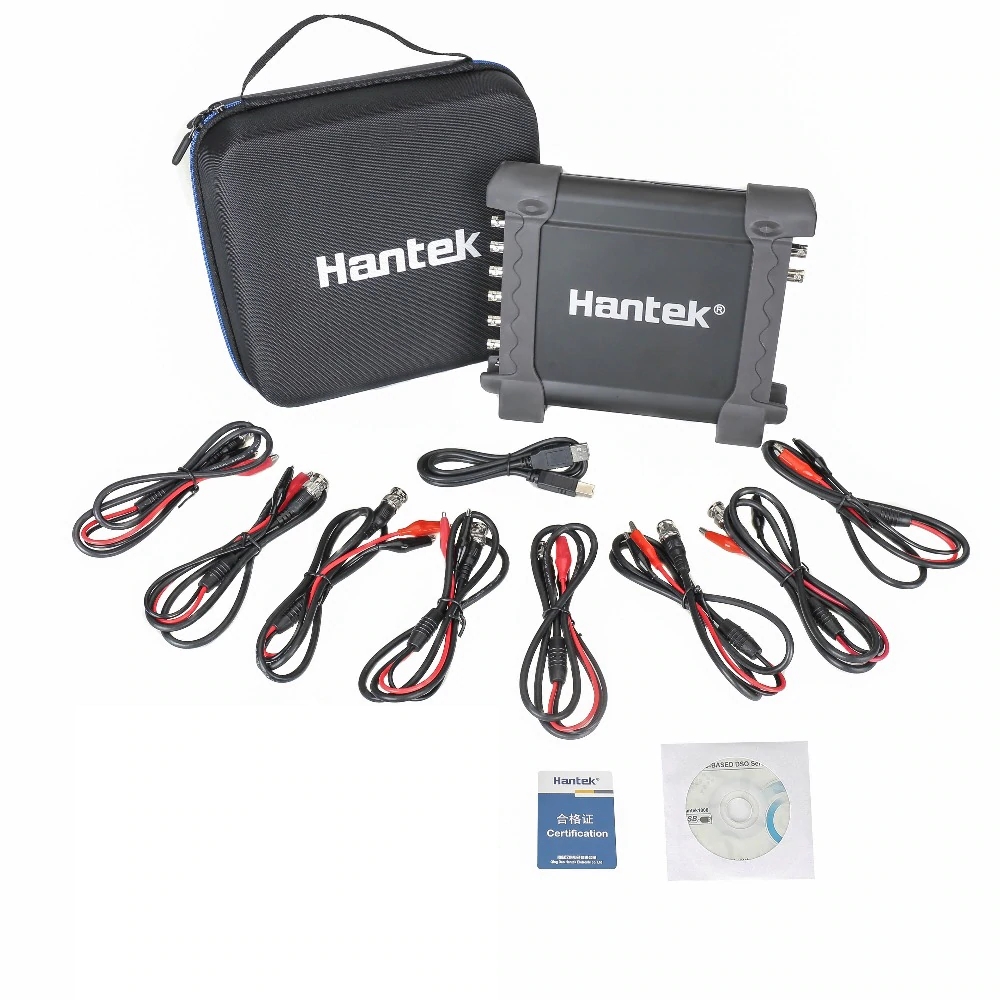

Package including

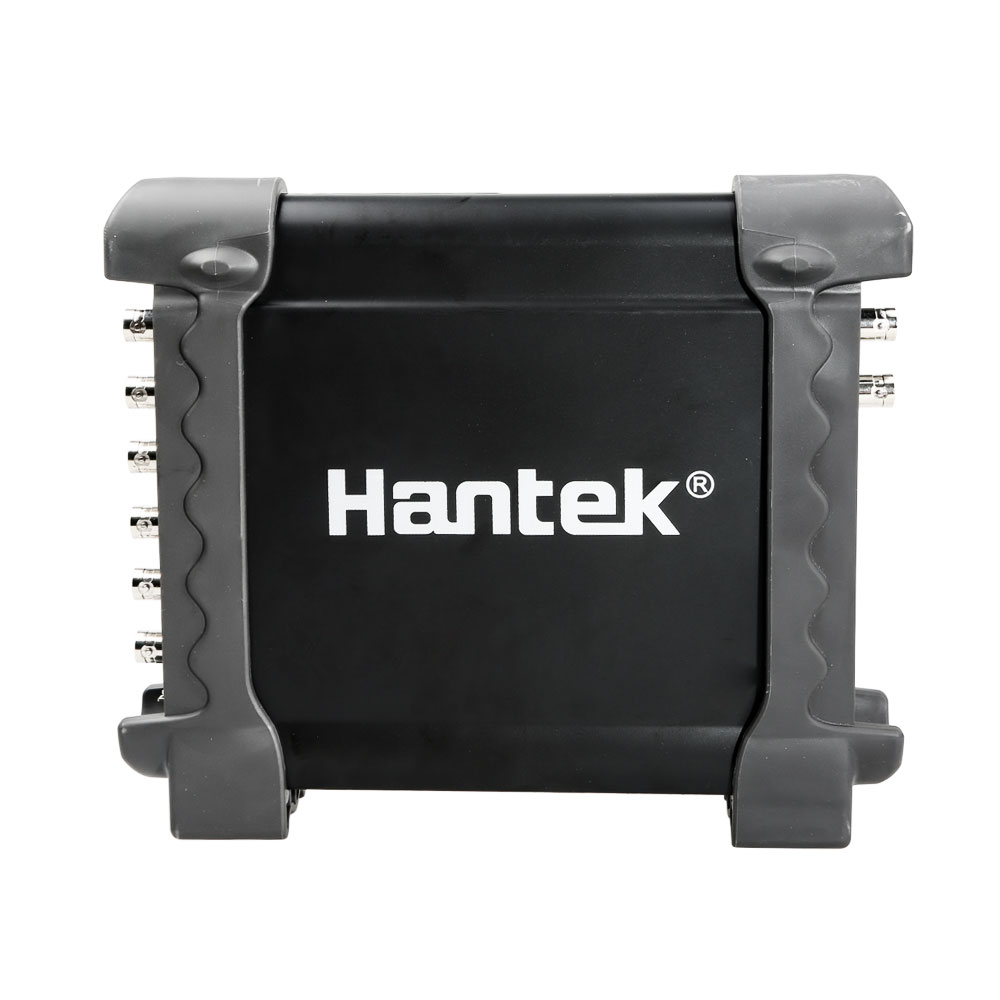

1 x 1008B oscilloscope

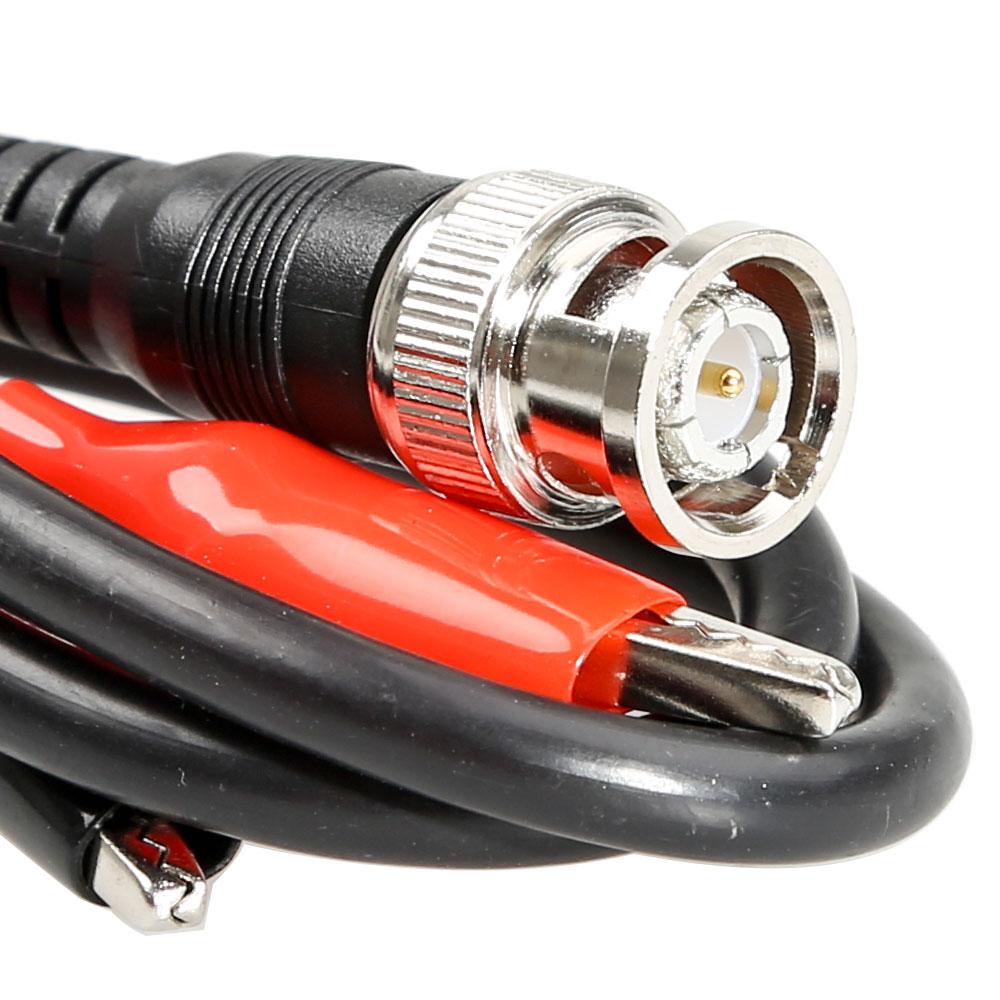

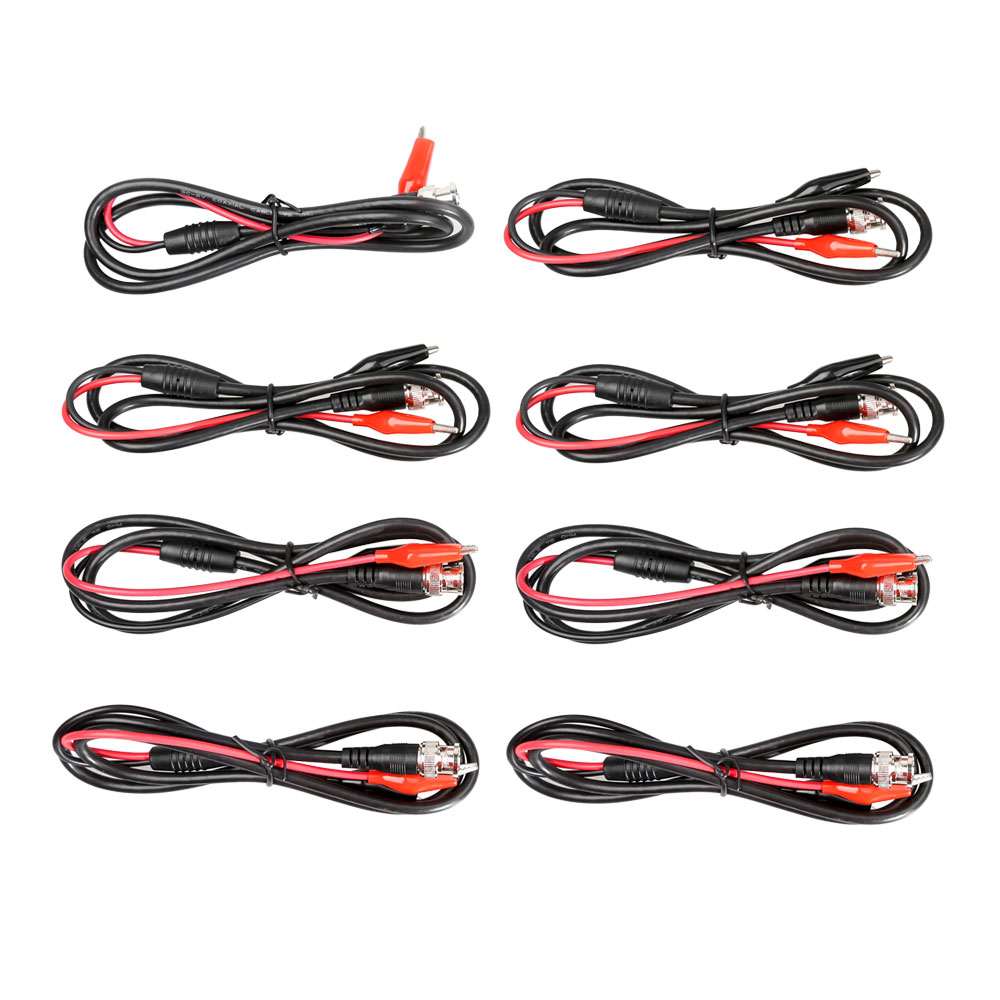

1x Crocodile probes/cable

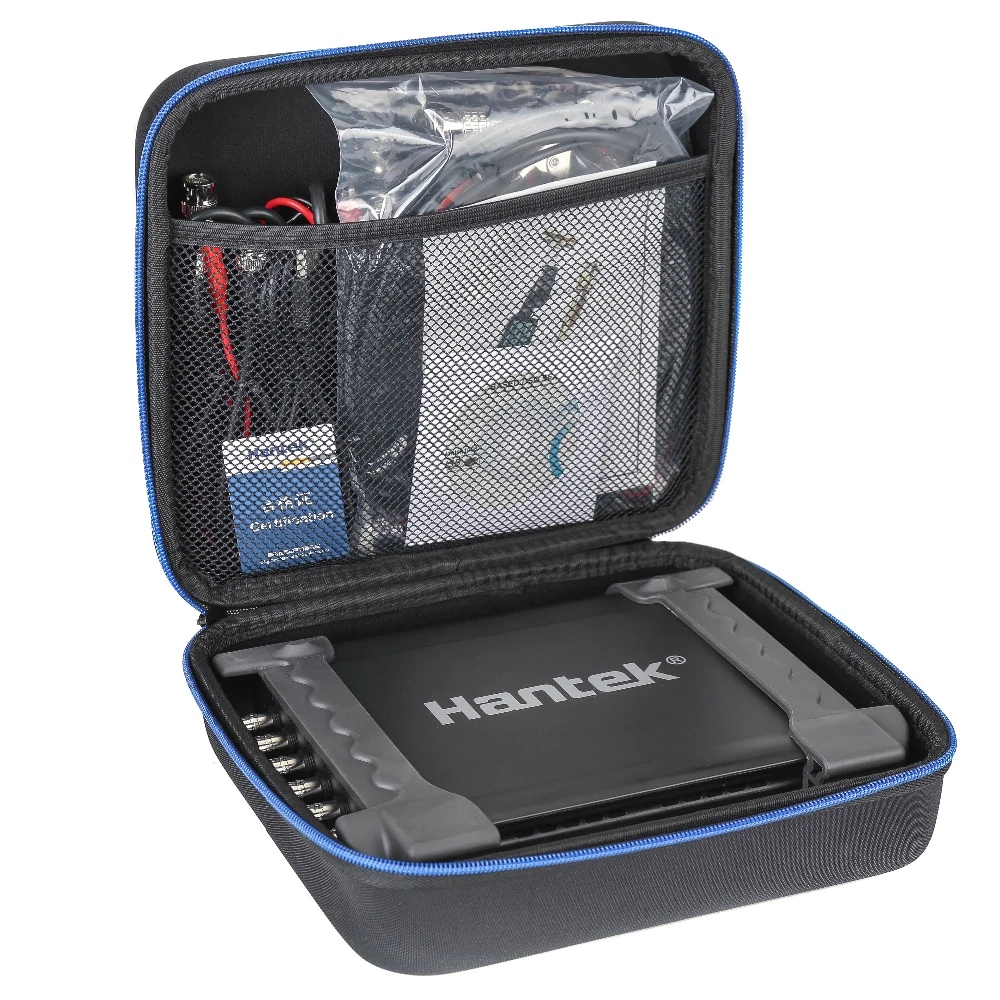

1 x Carring Bag

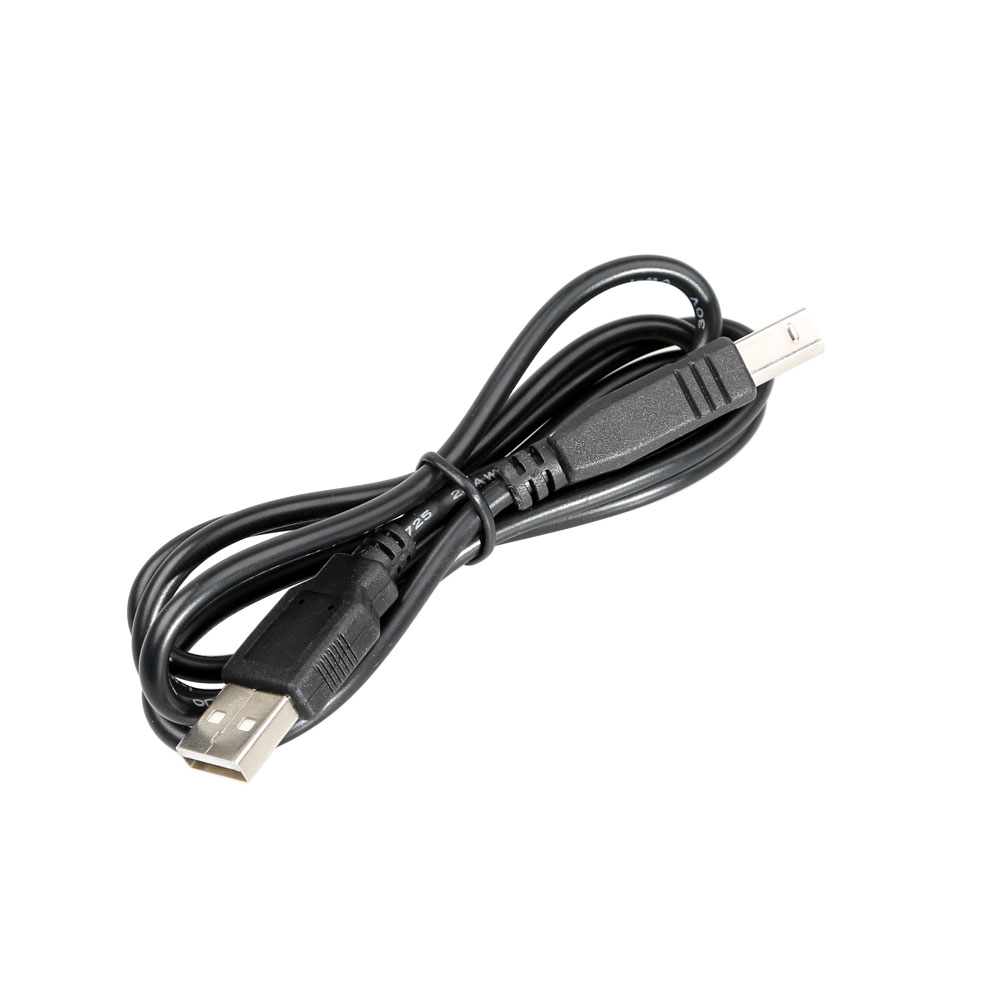

1 x USB Cable
1 x CD (driver etc.)
| Poids | 1.5 kg |
|---|
