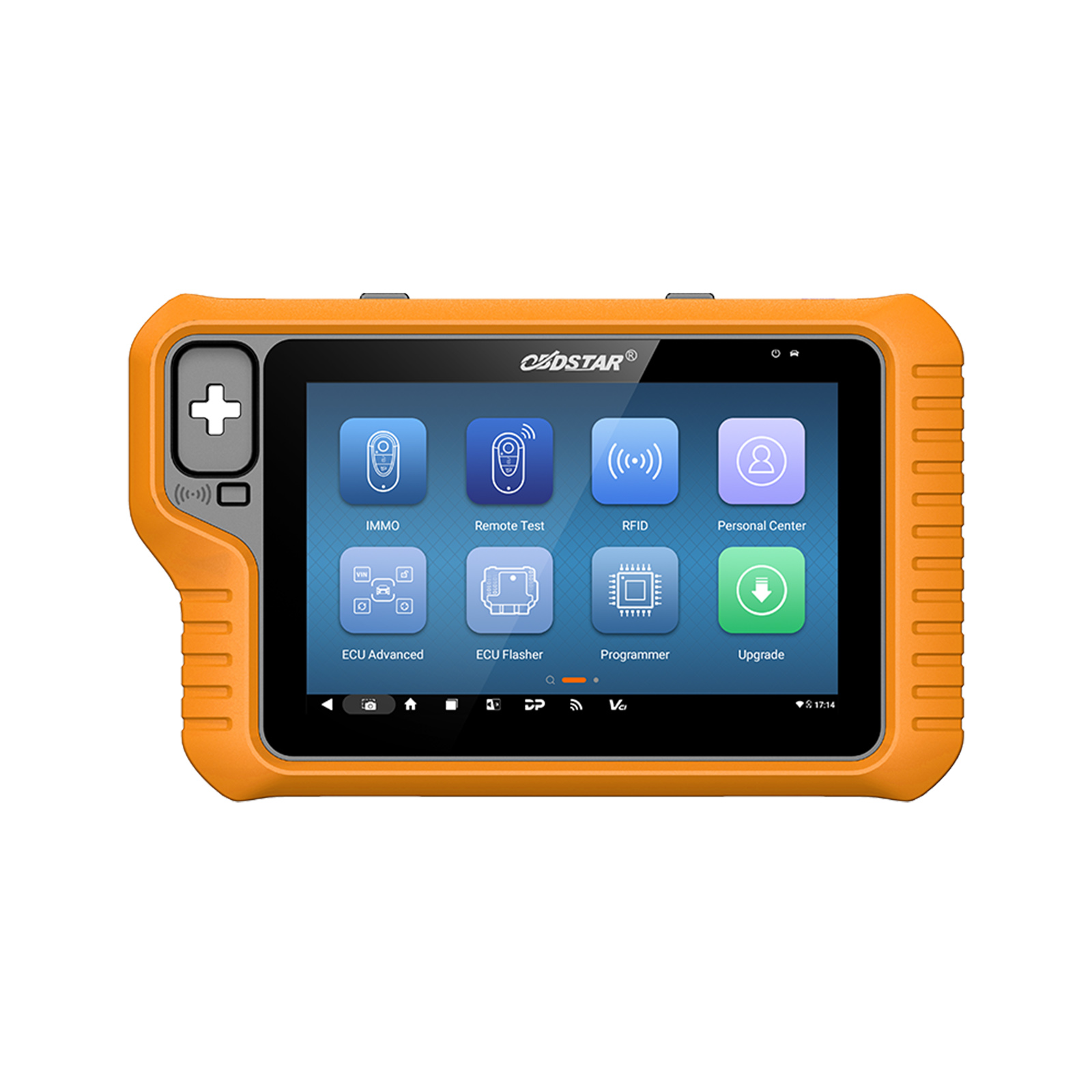

OBDSTAR X300 Classic G3 Key Programmer with Built-in CAN FD DoIP Supports Car, E-Car, HD, Motorcycle, Marine IMMO
1,395.00$
OBDSTAR X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively
OBDSTAR X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, marine (jet-ski), etc. A good helper for automotive locksmith master.
1.2 Years free update
2.Supports built-in CAN FD, DoIP, RFID, Renault converter
3.Supports Car, HD, E-Car, MOTO, Marine (jet-ski) Immobilizer
4.Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
The G3 expands on the features and functionality of the OBDstar X300 DP Plus key programming series and will have the ability to add the functionality of the OBDstar Odomaster mileage correction, P50 airbag reset, MT series test platform and DC706 ECU ECM TCM BCM BSI cloning tool.

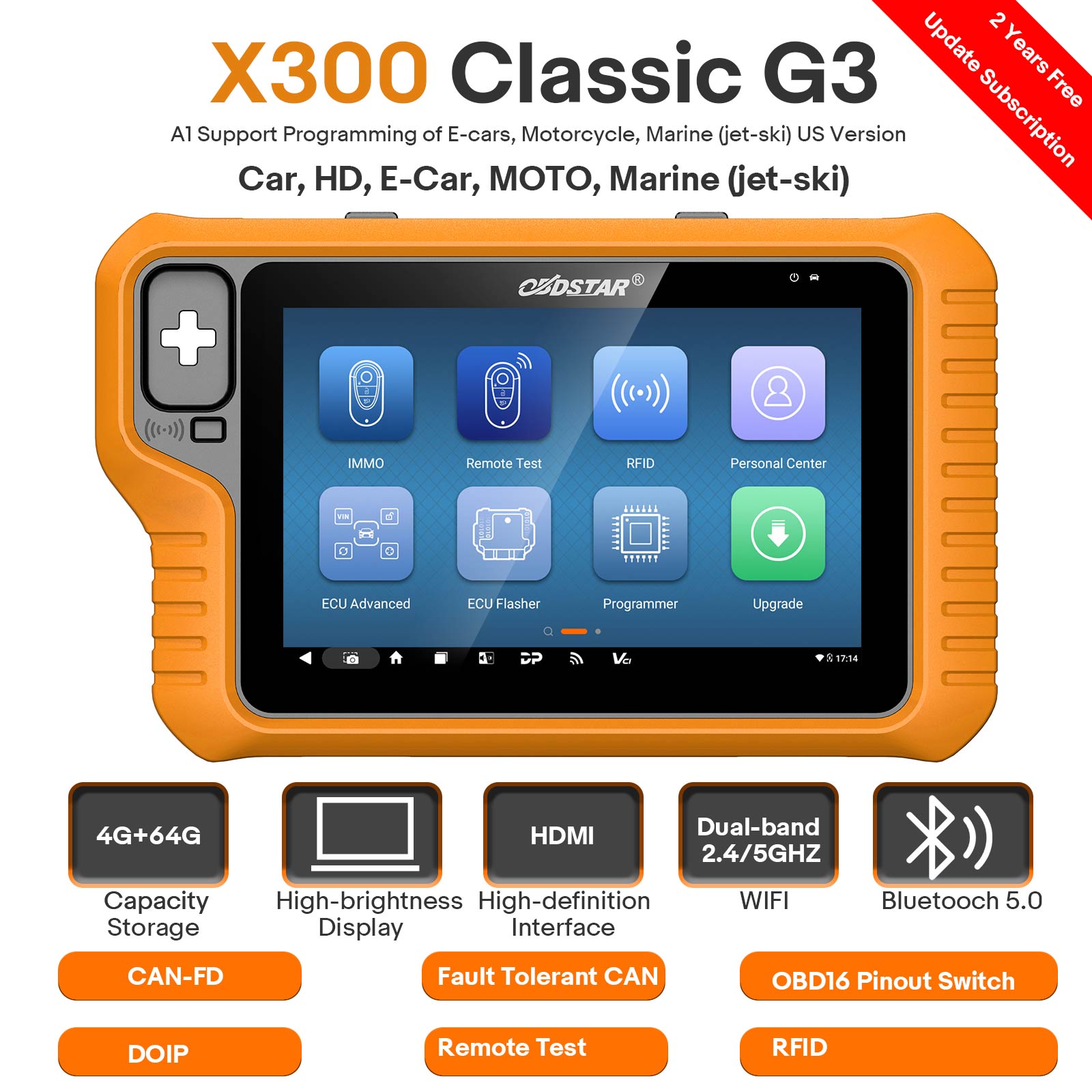

OBDSTAR X300 Classic G3 Key Programmer Specifications:
1.Two Years free update online
2.Update version of X300 DP Plus
3.RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
4.Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID
5.Comes with MP001 (replace P003/P003+ adapter) and P004 adapters in default
6.Language: ONLY English
7.2 years free update. Software subscription $249 per year later.
8.Paid software activation service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available. Turn device into a all-in-one tool.

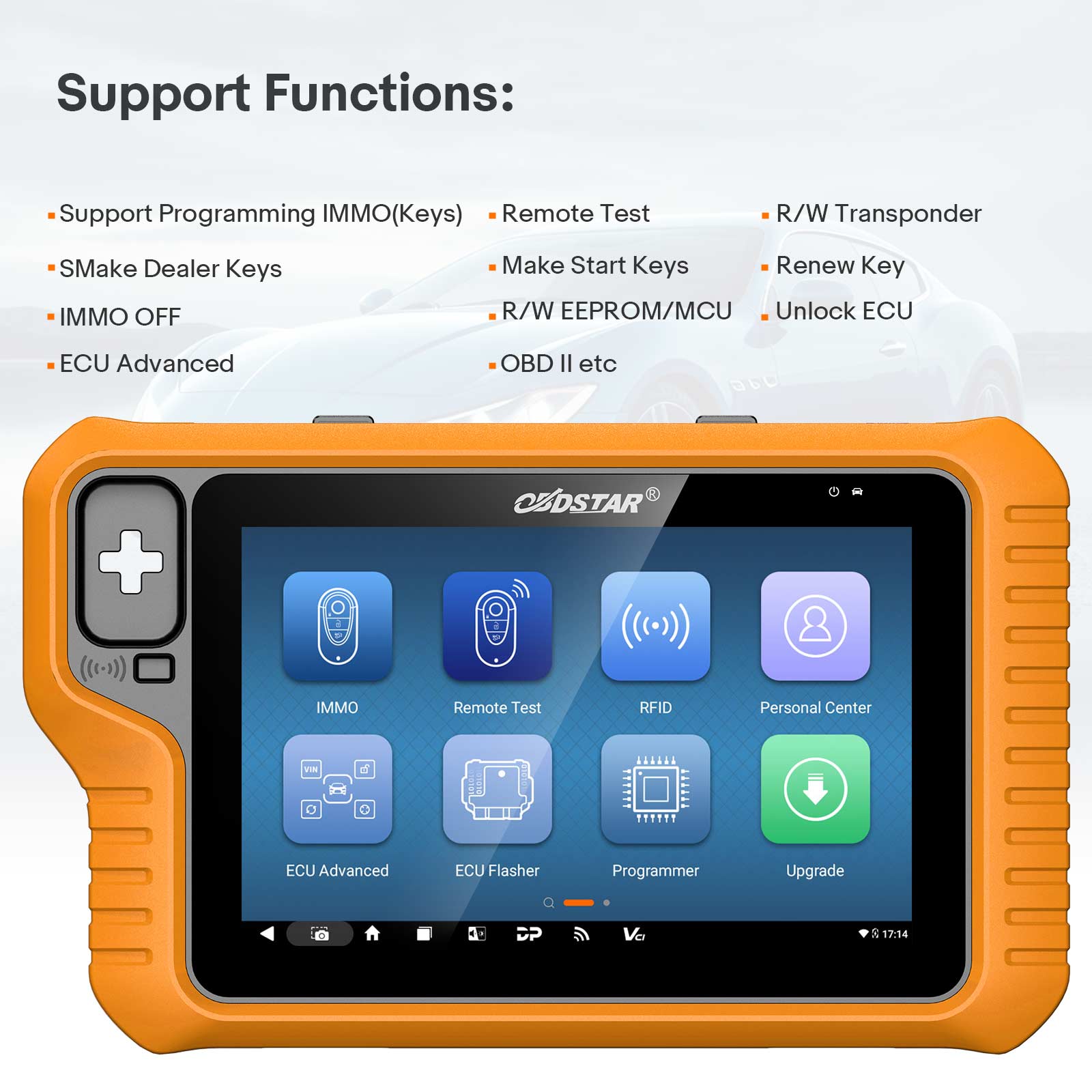

OBDSTAR X300 Classic G3 Key Programmer Support Function:

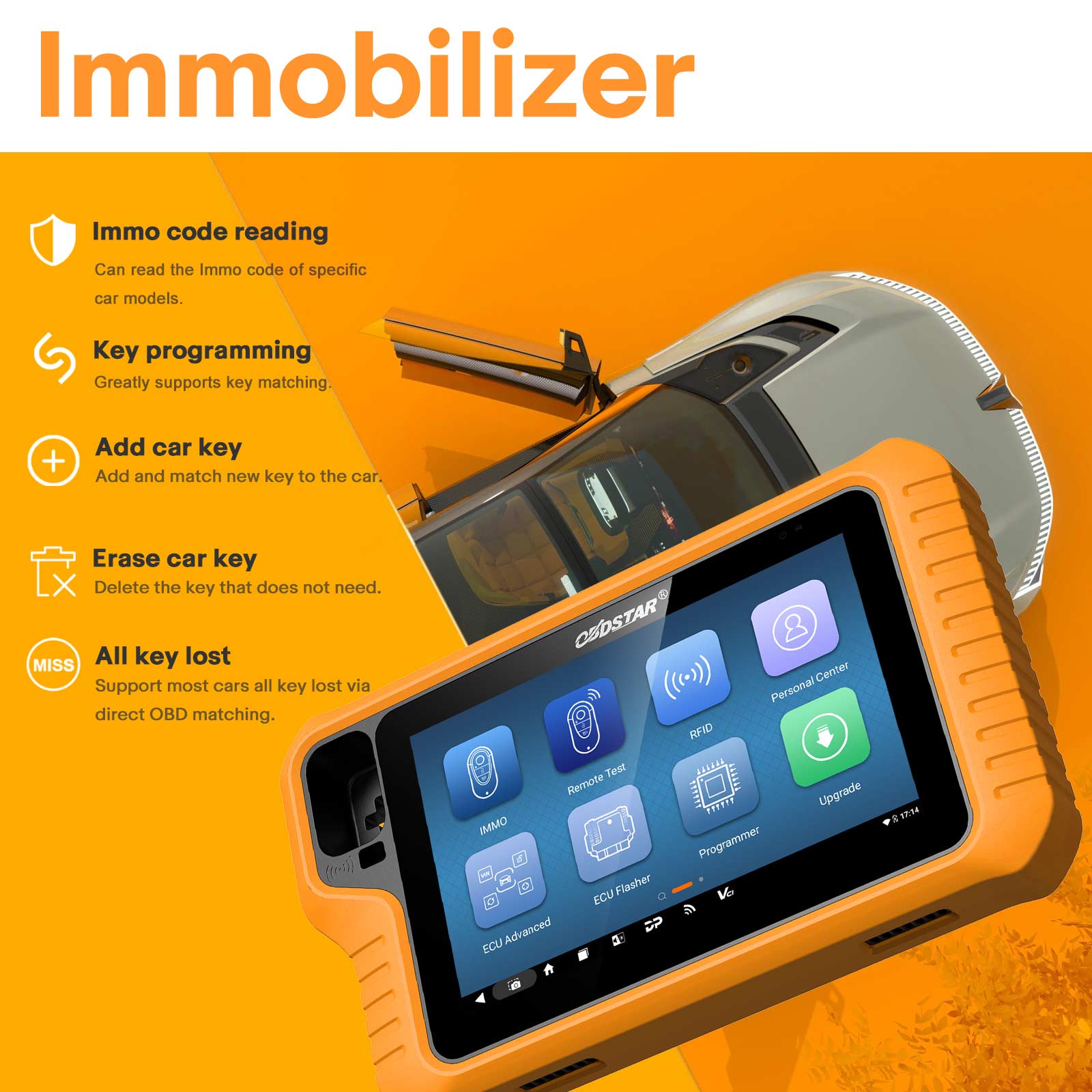

1.Programming IMMO(Keys)
2.IMMO OFF
3.Remote Test
4.R/W EEPROM/MCU
5.R/W Transponder
6.Unlock ECU
7.Make Dealer Keys
8.ECU Advanced
9.Make Start Keys
10.OBDII
11.Renew Key
12.Mileage correction (add-on module)
13.ECU/TCU Cloning (add-on module)
14.Airbag reset (add-on module)
15.Test platform (add-on module)

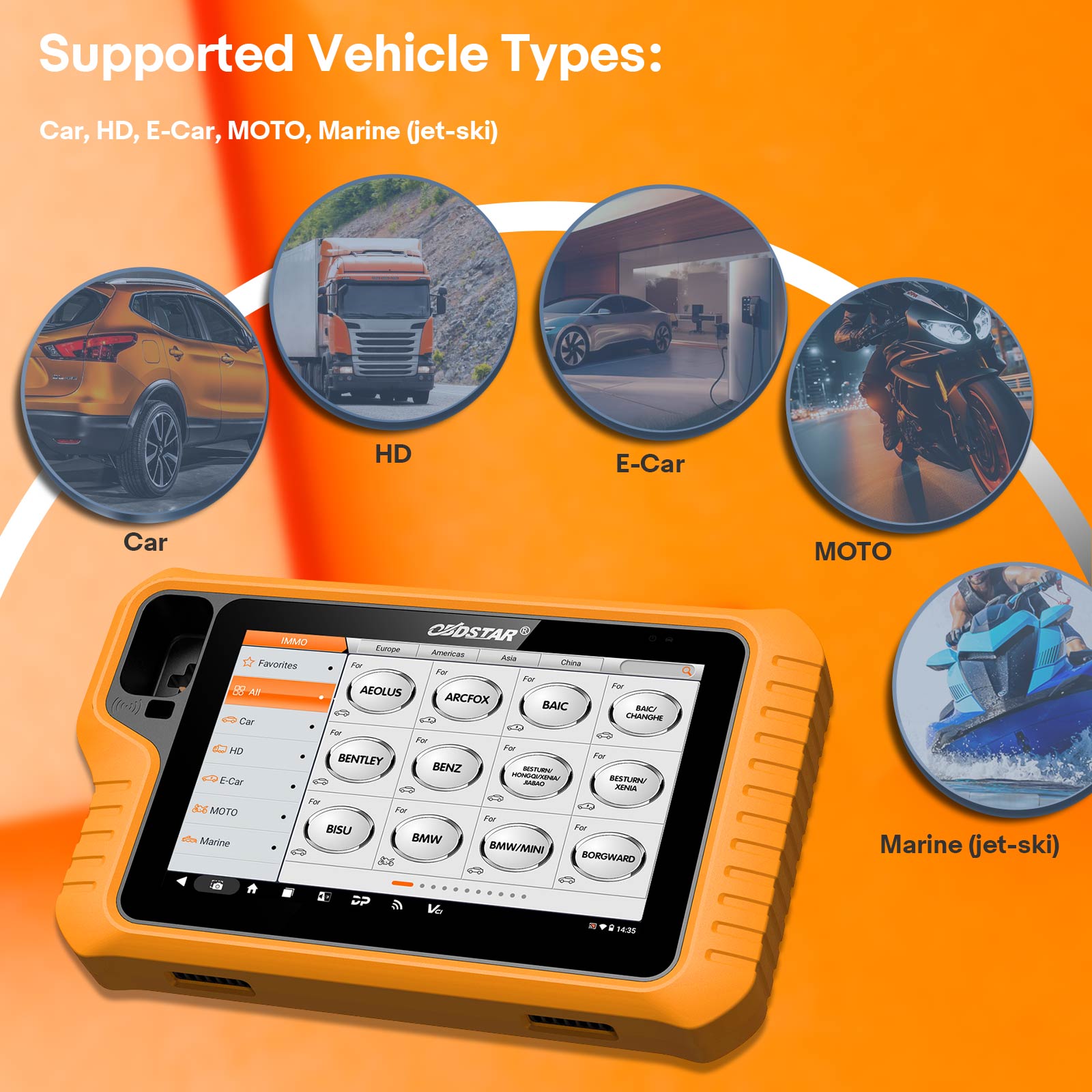

Supported Vehicle types
Car, HD, E-Car, MOTO, Marine (jet-ski)
Advanced Functions
1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFA ROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6SM6 models.
X300 Classic G3 Menu:
OBDSTAR X300 Classic G3 vs X300 DP Plus C pack
|
Item |
|
X300 Classic G3 |
|
|
Hardware |
Operation system |
Android 5.1.1 |
Android 11 |
|
OTA |
x |
√ |
|
|
Screen recording |
x |
√ |
|
|
Wireless screen casting |
x |
√ |
|
|
CPU |
qual core ARM cortex A9 1.4GHz |
Quad-core 64-bit Cortex-A55 2.0GHz |
|
|
Battery |
3700mAh |
9000mAh |
|
|
Storage capacity |
1+32GB |
4+64GB |
|
|
LCD |
8.0 inch |
8.0 inch fully laminated sunlight readable screen |
|
|
Camera |
Rear camera 500W pixels |
Rear camera 800W pixels, auto-focus |
|
|
Bluetooth |
Bluetooth 4.2 |
Bluetooth 5.0(Compatible with BT 4.2) |
|
|
External interfaces |
x |
RJ-45√ |
|
|
x |
HDMI√ |
||
|
TYPE-A |
TYPE-A,TYPE-C |
||
|
WiFi |
2.4G |
Dual-band 2.4G/5GHZ |
|
|
VCI |
STM32F105 |
STM32H723 |
|
|
CANFD Adapter Required |
CANFD built in√ |
||
|
x |
DOIP built in√ |
||
|
x |
Low Speed(Fault Tolerant) CAN built in√ |
||
|
x |
RS232, RS485 built in√ |
||
|
All other common protocol types |
All other common protocol types |
||
|
RFID |
P001 Required |
Built in√ |
|
|
Remote Test |
RT100 Required |
Built in√ |
|
|
Renault Converter |
Renault Converter Required |
Built in√ |
|
|
Weight |
About 1kg |
1.5kg (main unit) |
|
|
Dimension |
254mm*174mm*35mm |
270.5mm*165mm*39mm |
|
|
