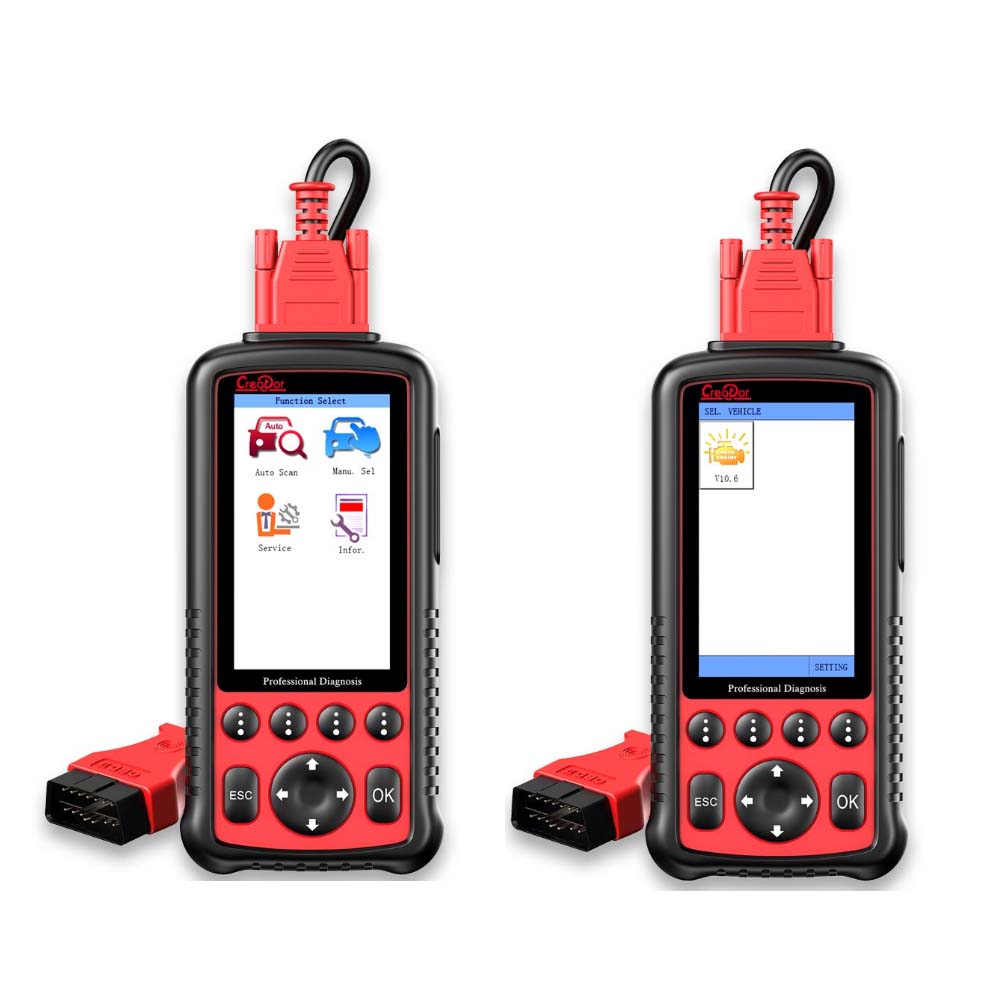

C600 BMW/BENZ/VW/FIAT Diagnostic Scan Tool OBD2 Code Reader

C600 BMW/BENZ/VW/FIAT Diagnostic Scan Tool OBD2 Code Reader

C600 is a unique tool that delivers OE-level diagnostics for all the electronic systems of different car brands. It supports the most commonly required service features such as Oil Light/Service reset, Brake deactivation , Diesel particle filter and so on.

1. Supports 7 Languages: English, Japanese, German, French, Dutch, Chinese and Traditional Chinese

2. Upgrade: Free software upgrade within one year .

3. Available applications are BMW, Mercedes-Benz, Fiat, Volkswagen, Seat, Audi, Skoda and more.

4. ECU Information: Provides the retrieved ECU Information in detail

5. Selecting it opens and information screen.

6. Read Trouble Codes: display detailed information of DTC records retrieved from the vehicle control module Clear Trouble

7. Codes: erases DTC records and other data from the ECU

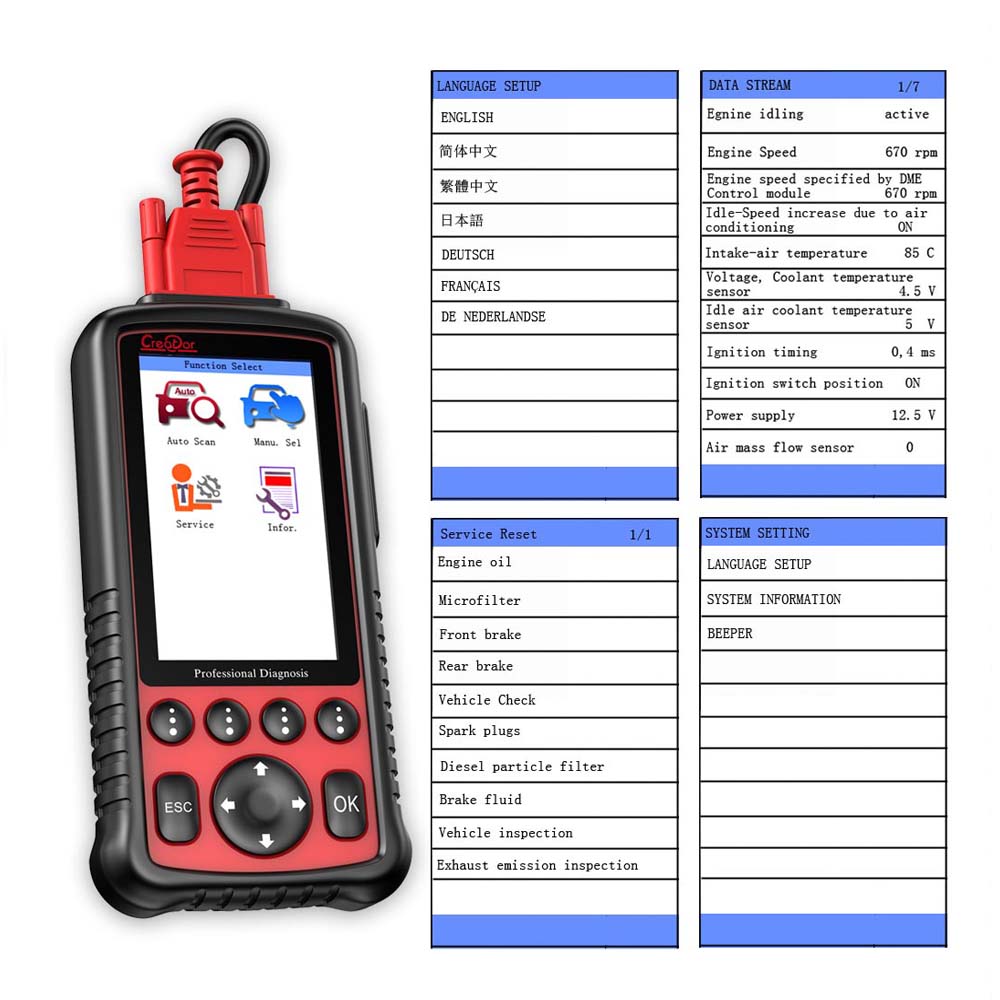

8. Read Data stream: retrieves and display living data and parameters from vehicle’s ECU

9. Service Function: Oil Light, Brake Reset, Micro Filter Reset, Diesel Particulate Filter Reset, Brake Fluid etc, each vehicle have different service.

What you can do with Creator C600:

1. Read fault codes and view life data. Such as Engine, Transmission, ABS and Instrument Clusters.

2. Clear the fault code and turn off the error indicator.

3. In addition, you can use it for oil maintenance, brake reset, diesel particulate filters, etc.

Software support：

1. OBDII/EOBD

2. BMW/MINI

3. BENZ

4. VW, Audi, SKODA, SEAT

5. FIAT, ALFA-ROMEO, LANCIA, ABARTH

Software function description

1.OBDII/EOBD Function:

Works on all 2001 and later OBDII compliant PETROL European vehicles

Works on all 2004 and later OBDII compliant DIESEL European vehicles

Works on all 1996 and later OBDII compliant US and Asian vehicles

Easily determines the cause of the “Check Engine Light ( MIL)”

Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes

Turns off Check Engine Light (MIL), clears codes and resets monitors

Displays DTC definitions on unit screen

Views freeze frame data

Identifies pending codes

Reads live PCM datastream

Graph displays live PCM datastream

Read I/M Readiness Status

Displays live O2 sensor test data

Performs modules present test

Retrieves vehicle information (VIN, CIN and CVN)

Supports CAN (Controller Area Network) and all other current OBD-II protocols

2. BMW/MINI software function Supports BMW between 2001 to 2018

1 Series: 1’_E81/E81/E87/E88,1’_F20/F21

2 Series: 2’_F22/F23,2’_F45/F46,2’_F87

3 Series: 3’_Z3_E36,3’_E46,3’_E90/E91/E92/E93,

3’_F30/F31/F34/F35,3’_F80

4 Series: 4’_F32/F33/F36,4’_F82/F83

5 Series: 5’_E39,5’_E60/E61,5’_GT(F07), 5’_F10/F11/F18

6 Series: 6’_E63/E64,6’_F06/F12/F13

7 Series: 7’_E38,7’_E65/E66,7’_F01/F02/F03/F04, 7’_G11/G12

X Series: X1_E84,X1_F48/F49,X3_E83,X5_E53,X5_70,X6_E71,

X6_E72,X3_F25,X5_F15/F85,X6_F16/F86,X4_F26

Z Series: 3’/Z3_E36,Z4_E85/E86,Z4_E89

I Series: I’_I01/I02

MINI: MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60, MINI_F55/F56

Include : Drive , Chassis and Body all system

Base functions : read trouble codes, clear trouble codes, displays live datastream and vehicle version information, short test.

CBS reset functions: Engine oil reset , Microfilter, Brake reset, Vehicle check, Spark plugs, Brake fluid, Vehicle inspection, Exhaust emission inspection, DPF etc.

CBS Correct functions: Engine oil reset , Microfilter, Brake reset, Vehicle check, Spark plugs, Brake fluid, Vehicle inspection, Exhaust emission inspection, DPF etc.

Special functions: Delete Transport mode, Set Transport mode, Throttle reset.

3. BENZ software function Supports BENZ Between 2001 to 2018

Include:

A (177)，A (176)，A (169)，A (168)

B (242, 246)，B (245)，

C (205)，C (204)，C (203)

E (238)，E (213)，E (212)，E (211)，E (210)，E (207)

S (222)，S (221)，S (220)，S (217)

CLA (117)

CLK (209)，CLK (208)

X 290 AMG

CLS (257)，CLS (218)，CLS (219)

CL (216)，CL (215)

SLK/SLC (172)，SLK (171)，SLK (170)，SL (231)，SL (230)

AMG GT (190)，SLS (197)，GLS (167)，GLE (167)，GLE (292)

M/GLE (166)，M (164)，M (163)

G (463)，G (461)，GL/GLS (166)，GL (164)，GLC (253)，GLK (204)，GLA (156)

R (251)，SLR (199)，Maybach 240

Include : Drive , Chassis and Body all system (Engine, Auto transmission, AB-airbag, ABS, EPS, TPMS, Air condition etc. have more than 100 systems)

Base functions : VIN code recognition, Auto Scan all systems, read trouble codes, clear trouble codes, displays live datastream and vehicle version information.

Special functions: engine oil Reset , EPS Reset, SAS Reset, ETS Match etc.

4. VW, Audi, SKODA, SEAT software function Supports all vehicle of VW, Audi, SKODA, SEAT before 2020

Supports all system on the vehicle, include: Engine, Auto transmission, AB-airbag, ABS, Air conditioning, Battery management, Light control ect. More than 200 systems. Base functions: VIN code recognition, Auto Scan all systems, Read codes, Erase codes, ECU information, Read Datastream, Active test, Basic settings, Advanced ID match

Special functions: Engine Oil Reset, EPB Reset, TPS Reset, SAS Reset

5. FIAT, ALFA-ROMEO, LANCIA, ABARTH software description

Supports FIAT, ALFA-ROMEO, LANCIA, ABARTH all vehicle between 2001 to 2016

Include FIAT models: JF-Freemont,FQ-Fiorino Qubo, MT-Mito, PE-Punto EVO, CL-500L,

CM-Viaggio, FF-500, DB-Doblo, BF-Fiat 500L, NP-Panda, DC-Ducato, OT-Ottimo, FB-500X, GA-Giulia etc. Include ALFA-ROMEO models: GU-Giulietta, QC-4C, MT-Mito, GA-Giulia, 33, 145, 146 etc. Include LANCIA models: NY-Ypsilon, JS-Flavia, DEDRA(111, 181), LYBRA, K, MUSA etc. Include ABARTH models: CC-Cinquecento, FF-500, 500, PUNTO EVO etc. Function: Read codes, Erase codes, ECU information, Live data

Specifications

A) Display: 4.3 Color LCD, 272 x 480 pixel display with contrast adjustment

B) Operation Temperature: – 0 ℃ — 75 ℃

C) Storage Temperature: -20 ℃ — 120 ℃

D) Power: 8V — 24V

Dimensions

Length 200mm

Width 95mm

Height 35mm

Weight

Net Weight: 750 g

Gross Weight: 900 g

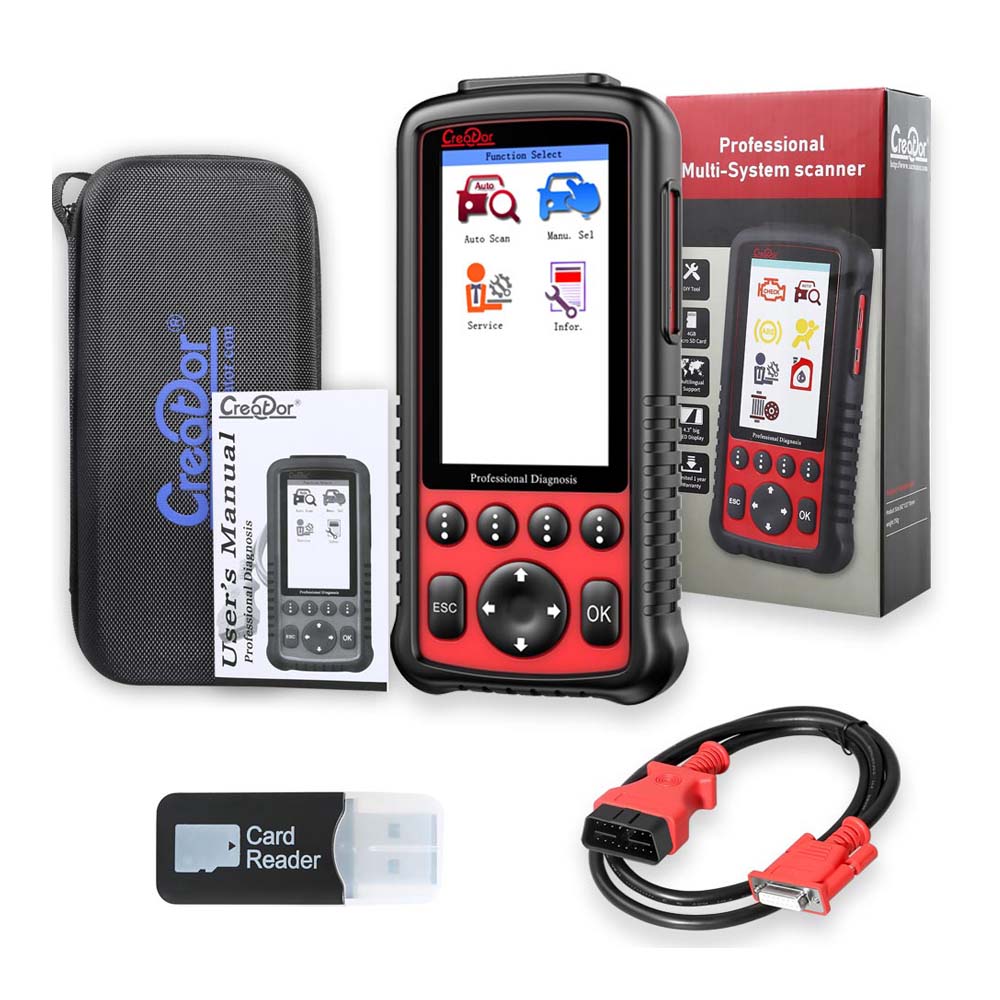

C600 Package includes:

1pc x Creator C600 Multi-System Scanner

1pc x User’s Guide

1pc x TF Memory Card

1pc x Memory Card Reader

1pc x Nylon Carry Bag
