LONSDOR K518S Auto Key Programmer Basic Version same as K518ISE

LONSDOR K518S Auto Key Programmer Basic Version same as K518ISE

Lonsdor K518IS Latest Update Policy:

Menus are divided into two parts: Free Menus and Subscribed Menus.

1. Free menus are free for lifetime.

2. Subscribed menus can be used for free for 180 days. You need to pay for them after the trial period. After the trial period, subscribed menus will not work properly if you don’t pay. And the menus will disappear after updating the Device.

K518updates.PDF

the black font model in this form is free, the red font model has a 6 month trial period, which is free for 6 months. The customer can click to decide the start time of the trial, try it for 6 months, and pay for it after 6 months.

The fees are as follows:

365 days is a period and the price is USD800 per period. One year period starts from the day of the trial period finished.

1st Year Subscription, $800

2nd Year Subscription, $600

3rd Year Subscription, $300

Lonsdor K518S Key Programmer:

1.Support language: English

2.Update: One key update online ; No Need Token for all cars

3.Support Immobilization Key Programming, dometer adjustment

4.Built-in-in Volkswagen 4th & 5th adapter

5.Built-in Chip & remote detection module.

6.Support car list : http://en.lonsdor.com/html/function

7.Free BMW FEM key programming

8.K518S key programmer is the latest version of Lonsdor, with wider vehicle coverage in key programming, it is customized as the first masterpiece to the overseas market from Lonsdor.

With months of preparation and rigorous testing, from the software design to the user experience, it is an epitomize of Lonsdor years of industry experience.

1.Lonsdor K518S is a key programmer for all makes from Europe, America, Asia and China.

2.It can also support odometer adjustment for some makes.

3.Its nice features are built-in Volkswagen 4th 5th adapter & RFID transponder reader / writer

4.Program Toyota/Lexus smart key all key lost via OBD

5.Free BMW FEM key programming (for all keys lost, enter 32-bit ISN code).

6.Lonsdor K518S is specialized on Volvo, Maserati, Ferrari, Lamborghini, Bentley, Nissan etc.support Astra H programming

K518S key programmer Function Description:

Please pay attention to below function description before using the device.

1. Immobilization: immobilizer system diagnosis

2.Odometer adjustment: mileage diagnosis and correction

3.Hardware testing: test if the hardware can function well

4.Adapter: after dismantling, diagnose certain car models

5.Setting: set up basic device information

6.Update firmware: adapter firmware upgrade & update (connect KPROG adapter

7.with OBD test cable and connect K518S with 12V power supply)

8.One key upgrade: click to update to the latest system data

9.Shutdown – turn off the device

SKE-LT: Smart Key emulator – Toyota/Lexus smart key for all key lost via OBD (Optional)

Black: SKE-LT-DST40(94/D4) -Supports 94/D4 smart key. (Optional)

Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.(Optional)

Green: SKE-LT-DST80(98)-Supports 98 smart key.(Optional)

Blue: SKE-LT-8A(A9)-Supports A9 smart key.(Optional)

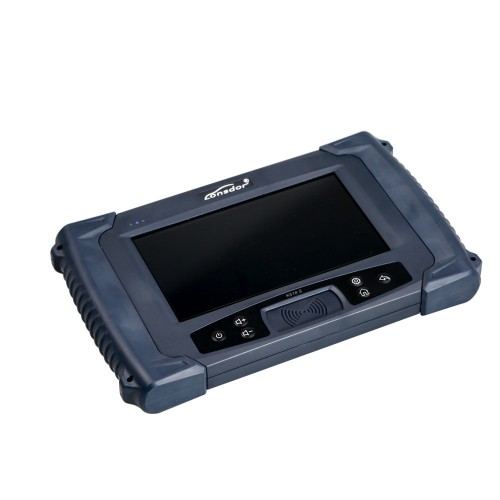

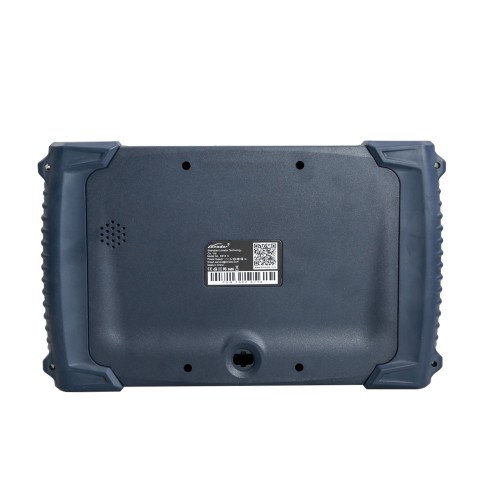

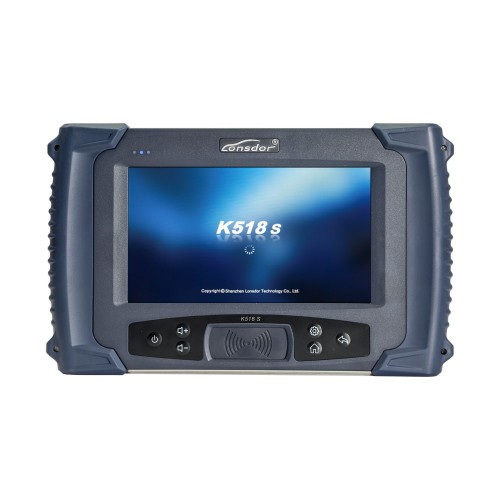

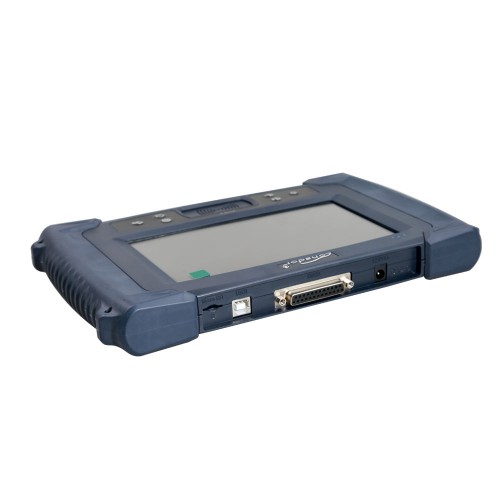

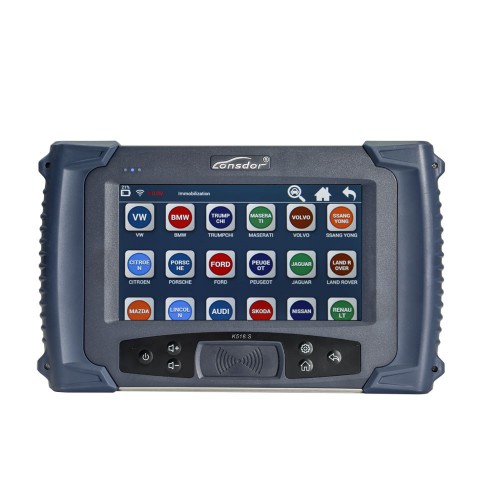

L518S main unit outlook:

1. Trademark: Lonsdor

2. Three-color indicator in turn will be: red – external power supply; blue – system power;

yellow – communication status

3. Capacitive touch screen: display and touch operation function.

4. Switch: press and hold for 3s to start. When in start state, press and hold for 3s to restart

or shutdown, for 10s to force to restart.

5. Volume: adjust volume size

6. Key frequency & chip recognition system: place the key on the surface to detect

frequency, push the slot shell to the right and put the key inside to detect chip

7. Setting: enter to set

8. Home: home page interface

9. Return: back to previous step

10. Built-in antenna: antenna inside

11. Model: K518s

Screen shot: press power button and volume down button together

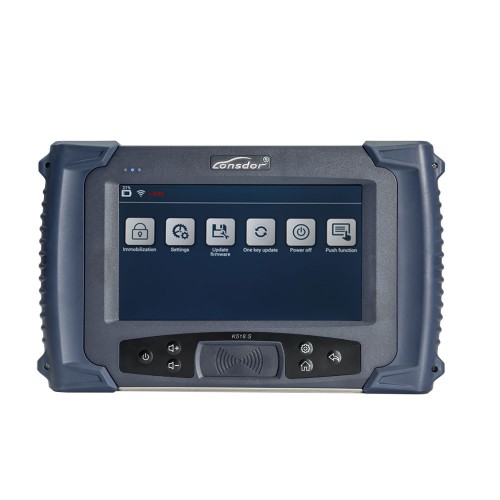

Main interface：

Immobilization interface:

Odometer adjustment interface:

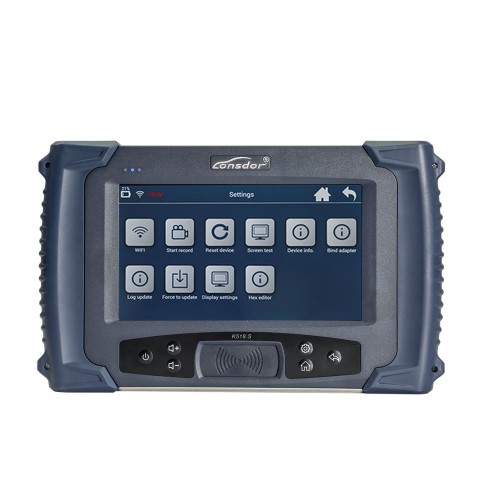

Setting interface:

Menus are divided into two parts: free menus and subscribed menus.

1.Free menus are free for lifetime.

2. Subscribed menus can be used for free for 180 days. You need to pay for them after the trial period. After the trial period, subscribed menus will not work properly if you don’t pay. And the menus will disappear after updating the device.

A. 365 days is a period and the price is USD600 per period. One year period starts from the day of the trial period finished.

B. Purchase menus with a dealer. You can use the menus normally and permanently after payment.

C. Menus which you purchase includes subscribed menus that have been released and that will have been released in one year period.

D. Subscribed menus beyond one year period requires extra payment.

Lonsdor K518S Key programmer Special Features:

Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming.

Toyota/Lexus: smart key all key lost – via OBD ( without dismantle)

BMW CAS3/CAS3+/CAS3++: direct OBD programming

BMW CAS4/CAS4+: dismantle & read data programming

BMW FEM system key programming

2016 -New Maserati: smart key programming

2016 -New Ford: smart key programming

Hyundai / Kia 46/47/8A smart key: PIN code reading via OBD, all key lost included.

Renault ( Megane, Koleos, Scenic) without PIN code key programming

VAG group 4th & 5th immobilizer system

Ferrari (458, F12, F149): direct OBD programming

Peugeot /Citroen: two ways to read PIN code & programming, all keys lost included.

How to Use Lonsdor K518S

Here I take the Toyota/Lexus smart key all key lost as example.

1)Binding

1.Go to the “Bind emulator key” function;

2.Turn on emulator key and put it into K518S key slot (put the status indicator down, make sure the key is active);

3.Following the system direction and click “OK” to start binding;

4.After binding completed, the system will indicate “Binding successful”.

Note: The KPROG adapter is specialized for part of Volvo car series and the new Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as Jeep Grand Cherokee, please refer to our website or directly go to the”One key update” for latest news.

2)Backup EEPROM data

Connect K518S with car OBD port, enter into “Backup immodata” to back up the data.

3)Make emergency emulator key

After choosing the immo data, in a network environment, the system will indicate to choose the corresponding SKE emulator key model, please start the key

and put it into K518S key slot(make sure the key is activate), follow the instruction to make an emulator key.

4)Add smart key

Click the car start button, put the generated SKE emulator key close to the start button, with induction the car will automatically activated.

The system will read current key count, then follow the instruction to add key.

Precaution

1.”Bind emulator key” can identify the SKE emulator key binding state;

2.SKE emulator key need to bind K518S host and can bind only for one time;

3.When making emulator key, make sure well net connection and to choose the corresponding SKE emulator key model correctly.

Cars coverage list for immobilization:

Europe:Audi, BMW, Benz, VW, Volvo, Citroen, Ferrari, Maserati, Fiat, Lamborghini, Jaguar, MG,

Land Rover, Bentley, Lancia, Opel, Peugeot, Porsche, DS, Renault, Alfa Romeo, Smart,

Borgward

America:Cadillac, Chevrolet, Dodge, GMC, Buick, Hummer, Ford, JEEP, Lincoln, Mercury

Asia:Honda, Hyundai, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki,

Toyota, Shigaoka Queen

China:Iveco, Trumpchi, BYD, Geely, Chery, Great Wall, Young Lotus (Basically all Chinese car

models are included)

Odometer Adjustment Car List:

VW, Porsche, Ford, Jaguar, Land Rover, Mazda, Audi, Renault, Hummer, Hyundai, Kia…

Note: more high-end cars will be updated very soon.

Note: K518S is still under rapid upgrading, more functions and be released soon, please refer to our website www.lonsdor.com foalso you can “One key update” for the latest version by yourself

K518S Key Programmer Technical Parameter:

RFID Support: 125KHz ASK;

134.2KHz FSK

Battery capacity :3800mAh

CPU:ARM Cortex-A7 Quad-core

Processor Speed 1.34GHZ

Power supply :DC12V 1A

WIFI communication distance :10m

Power port:5.5×2.1mm

Display:1024×600, 7 inch IPS

capacitive screen

OBD port: OBD-II

Memory :eMMC 8G RAM 1G

Comm port: USB2.0-type B

OBDII protocols: ISO15765, ISO9141, ISO14230, SAEJ1850, KW1281, VW TP1.6 TP2.0 etc.

KPROG: support programming MCU and EEPROM on ECU circuit board.

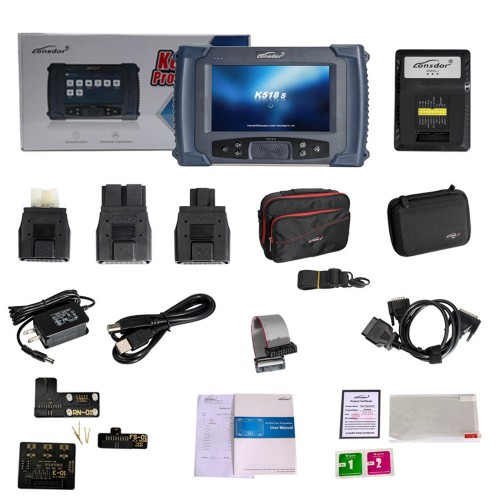

Package includes:

1 x Portable Bag(big)

1 x Main Host

1 x Power Adaptor

1 x USB Cable

1 x Packing Bundle

1 x OBD Test Cable

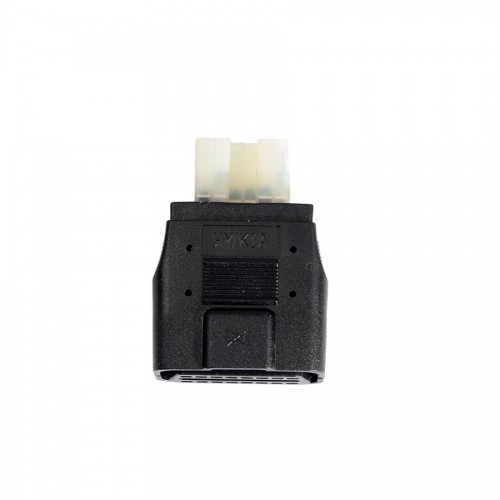

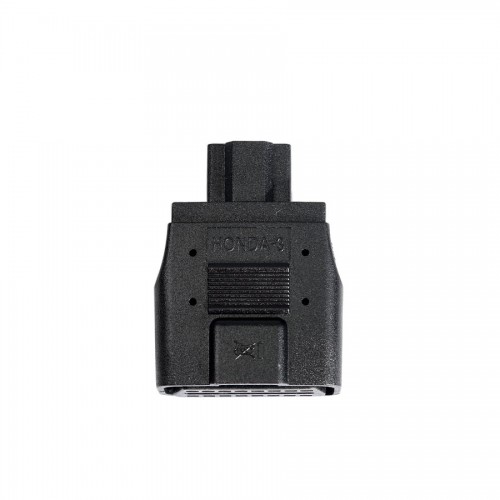

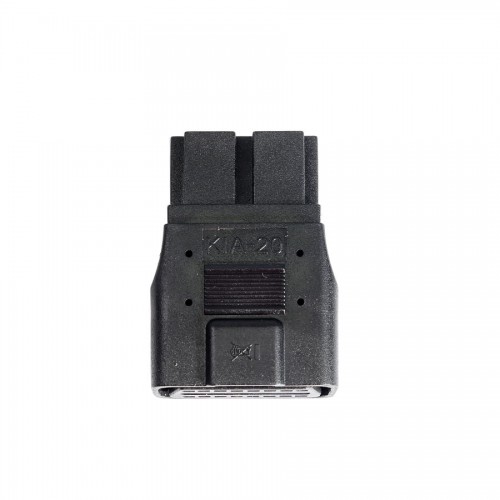

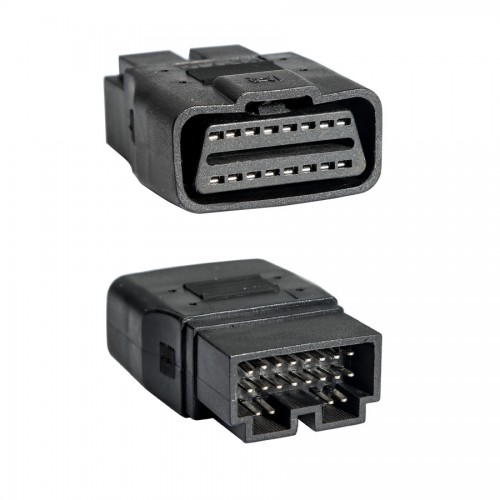

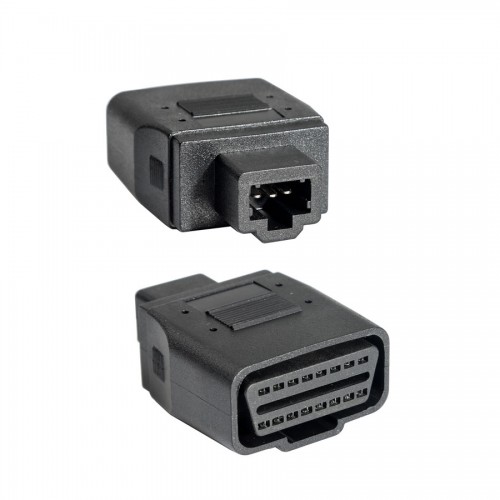

3 x Extra Connector

1 x Londor K518 S User Manual

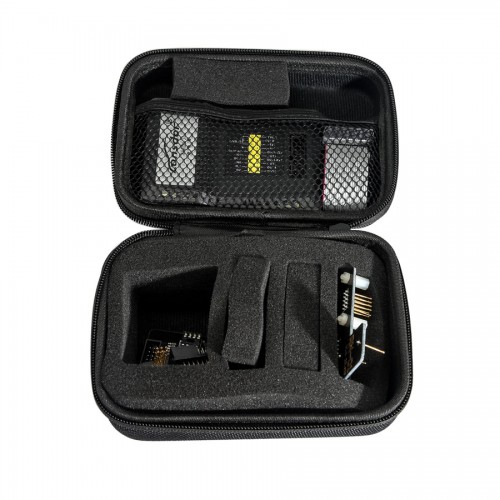

1 x Portable Bag(small)

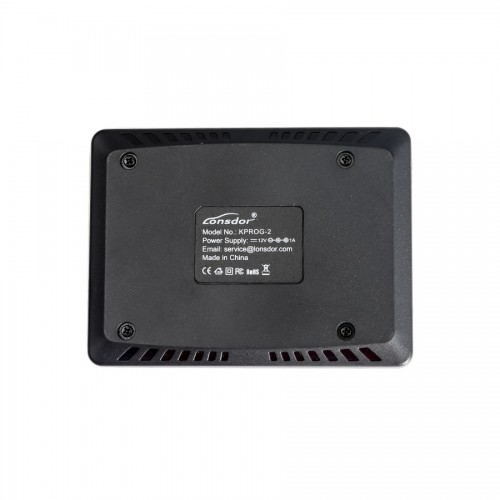

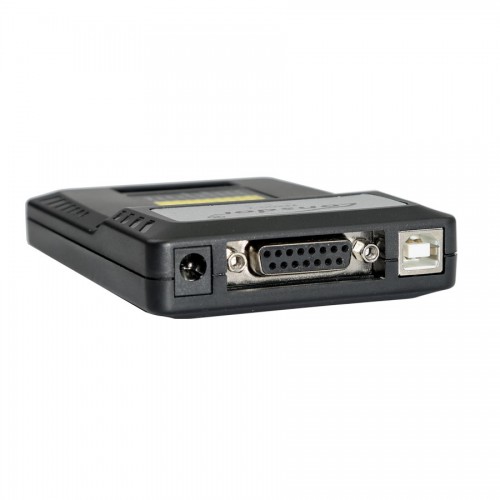

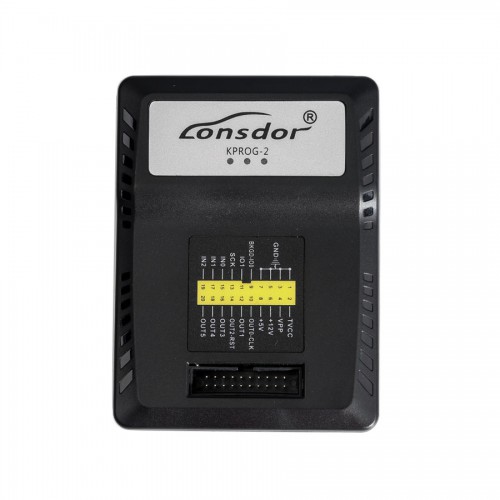

1 x KPROG Adapter

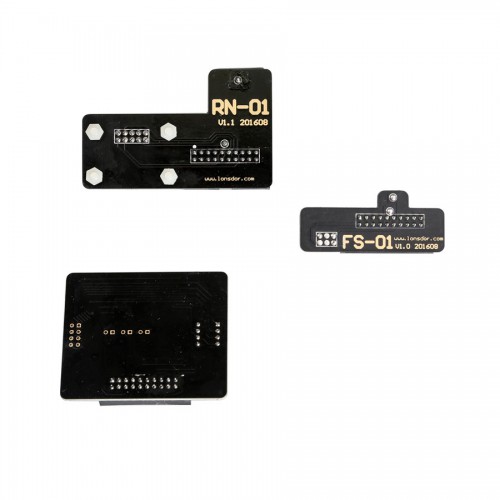

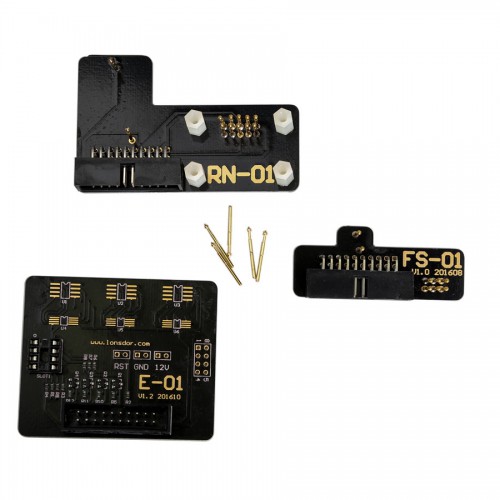

1 x RN-01 Board

1 x E-01 Board

1 x FS-01 Board

1 x 20P Cable

5 x Backup Pin

1 x Certificate

How to Update Lonsdor K518S Key Programmer

After networking, the system will automatically updated to the latest version. There are 3 ways of system update:

One key update: quickly update the new added or modified functions.

APK update: this is used when the APK is updated.

Force to update: this is used when the device is faulty or to retrieve data.

How to Register Lonsdor K518S best key programmer

After system updating, you need go to registration&activation.

For new user,

Click on Registration,

Input: user name(email), name(min 2 char), password(min 6 char), email verification code

Click on YES

Lonsdor K518S registrationcompletes

(if interrupted after registration is done, you will go to the System update–Registered user to proceed).

Then go to Activation confirmation to continue.

How to Activate Lonsdor K518S car key programmer tool

After confirming activation, it will go thepassword Setup interface

set 6-digit numbers as your startup password

information verification by Lonsdor

(5-30 minutes, you can check the progress by clicking “Refresh” )

re-enter the password to verify

get the notification that verification successful

the whole process before using the device is complete.

The most important note:

1. User name must be workable email address, so that you can receive the verification codefrom Lonsdor by email.

2. Please pay attention to the difference between the registration password (min 6 char) and the startup password(6-digit), the former

will generally only used when registration, so please commit the 6-digit startup password into memory, as this will be required every time when you start the device.

3. The account will be bound to the corresponding device for life, other accounts can not log in your device and your account can not log

in an registered or activated device either. 4. An account can be used to bind multiple new devices

Lonsdor K518S -Volvo S60 Smart Key-half-keyless

This help file basically includes 4 parts: Function, Operation, Attention, and Reference.

Function

1. Add key: please first make sure if the key is a new unused one;

2. All keys lost:please first make sure if the key is a new unused one;

3. Read CEM security data: dismantle & read CEM to backup security data (make sure to backup security data before programming);

4. Key identification and unlocking: to identify if the key is a new unused one. If the remote control is invalid after key programming (on condition that battery has been installed and the remote control frequency is correct), try to import the CEM safety data to unlock key, and program again after unlocking successful.
