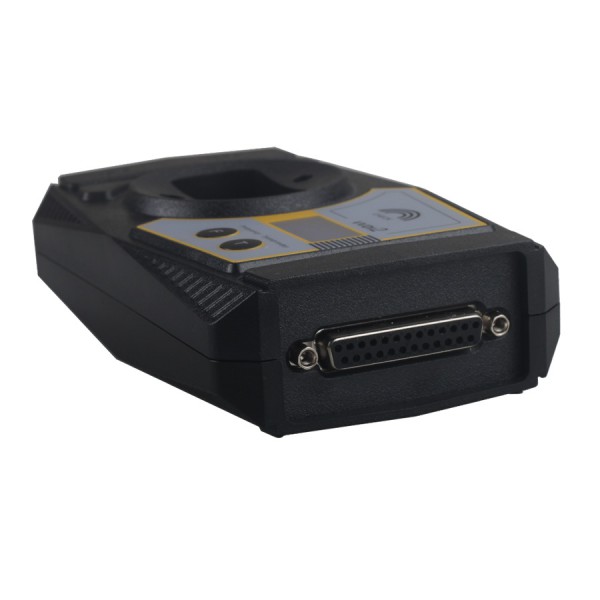

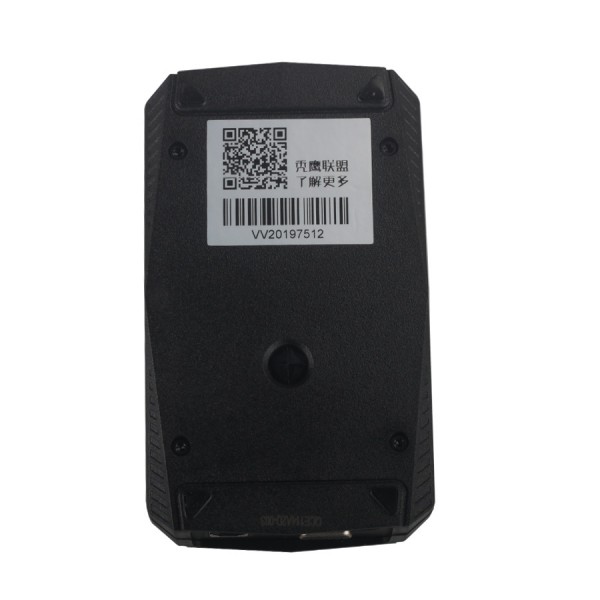

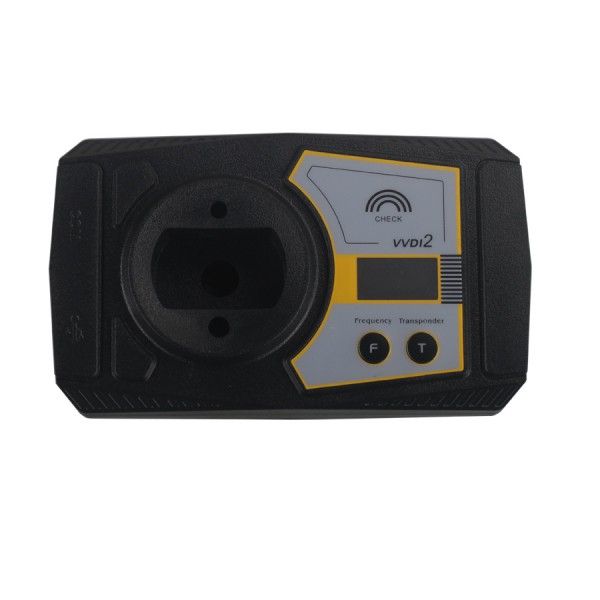

Original Xhorse V4.0.0 VVDI2 Commander Key Programmer for VW/Audi/BMW/Porsche Full Version

VVDI 2 Key Programmer Full Version

Top 7 Reasons to Get VVDI2:
1. This VVDI2 Full Package Contains Basic Function + VW + BMW + Porsche+ PSA + AUDI Generation 5 Function + BMW OBD Fucntion + BMW CAS4 Functions + Tango + J2534
2. VVDI2 Full Package Covers All the Functions of VVDI, VVDI 5th IMMO Adapter, BMW Multi Tool & CAS Plus for BMW Multi Tool
3. Support VW, Audi, BMW, Porsche & PSA
4. Update Online Free Lifetime
5. Latest Version: V5.6.0
6. Newly Add BMW FEM/BDC Function, Copy 48 Transponder by OBDII Function & Copy 48 Transponder (96 bit ) Function (Kindly note these functions not for free, needs additional cost)
7. VAG EDC17 PIN, MAC, CS calculation via eeprom and flash dump (the function can be activated even without having condor key cutter), please provide VVDI2 serial number to activate

Difference Among All the VVDI2 Key Programmer:

VVDI2 – BMW FEM/BDC System (function released and available, just no user manual)

Users can refer to following information (3 steps for make keys:get key info->programming FEM/BDC system->make keys)
1.support make new key with ignition switch(support add spare key and all key lost, all key lost require ISN)
2.support reset FEM/BDC KM(cluster require reset manually)
3.support erase key(after erase the key position become blank position)
4.support backup coding
5.support restore coding

Notes:
1.backup coding and restore coding can direct operation generally.
2.add keys, reset KM, erase key must programming FEM/BDC system first
3.in FEM/BDC interface, if ‘get key info’ the type not support, it will show:customer should use “BMW E-sys software” program FEM/BDC system.then programming FEM/BDC system with VVDI2-BMW
4.when operation on ‘programming FEM/BDC system’interface,please don’t close this software window until all procedures completed.
5.programming FEM/BDC system, require soldering and get eeprom.（FEM 95128 chip, BDC 95256 chip）usually there are 2 same chips on the module, please refer to the software diagram, select the correct one.
6.programming FEM/BDC system,must restore the original eeprom, restore coding.if cannot restore coding or after restore coding assemble FEM/BDC module back to car,but with problem(such as the remote control cannot start the car
or the car with window problem)please use “BMW E-sys software” coding for FEM/BDC system
7.if connect power to FEM/BDC module, but the relay keep ringing,please contact technical support for help.usually operation on FEM/BDC should be ok,just need to programming.

VVDI2 V5.6.0 update Info(2018-06-19)
Require firmware V5.5.0
VAG V5.6.0
1. Immoprovement for autodetect VAG immobilizer system
2. Flash VAG firmware(frf, odx, sgo): support 3 different speed for transfer can message: fast, middle, low
3. Bugfix

BMW V5.6.0
1. Bugfix for BMW FEM/BDC backup and restore coding, support ISTAP64.2
2. Bugfix

Transponder Programmer V5.6.0
1. Bugfix for copy remote
2. Bugfix for make proximity remotes
3. Immobilizer data tool: Euro->Rover->Rover/Jaguar(2015-) MC9S12EXT256/MC9S12EXQ384
a. Require load KVM/RFA DFLASH and EEPROM dump file
b. Support emergence start when key without battery: Require update BCM DFLASH
c. After make new dealer key and write new dump to KVM/RFA module: The new key can start engine directly, remotes and proximity function work, no need adaptation again
d. Support erase the lost key
4. Bugfix

VVDI2 latest software version V5.5.0 update 2018-05-15
*** Require firmware V5.5.0
===== VAG V5.5.0 =====
1. Add support for 2012-2014 MQB(Continental/VDO) immobilizer and mileage. Support
following cars:
a. VW Golf7 (2012-2014)
b. Skoda Octavia3 (2012-2014)
c. Audi A3 (2012-2014)
d. Seat Leon (2012-2014)
2. Bugfix for old bentely (2006 kline) key learning
3. Bugfix for flash VAG firmware(frf, odx, sgo)
4. Bugfix

===== BMW V5.5.0 =====
1. Add support for ISTAP63/64 FEM/BDC, support following version:
a. FEM 0000155E_016_114_020
b. FEM 0000155E_017_110_030
c. BDC 00002419_062_010_020
d. BDC 00002419_071_010_040
2. Bugfix for CAS4 file make key
3. Bugfix

===== Porsche V5.5.0 =====
1. Bugfix

===== PSA V5.5.0 =====
1. Bugfix

===== Transponder Programmer V5.5.0 =====
1. Add support for make proximity remotes – Prepare various proximity remotes with
VVDI universal proximity remote(Require database version above 238)
2. Immobilizer data tool: bugfix for Euro->Fiat->Grand Punto 93C86
3. Immobilizer data tool: bugfix for Asia->Hyundai->Tiburon 2008 29F400
4. Immobilizer data tool: bugfix for Euro->Saab->9-3 1999 68HC05
5. Bugfix

===== Copy 48 (96 bits) V5.5.0 =====
1. Bugfix

===== J2534 V5.5.0 =====
1. Bugfix

===== Online Upate Tool V5.5.0 =====
1. Bugfix

===== Quick Start V5.5.0 =====
1. Bugfix

VVDI2 latest software V5.3.0 update 2018-03-22
*** Require firmware V5.2.5
===== VAG V5.3.0 =====
1. Improvement for prepare MQB dealer key
2. Improvement for MQB keyless GO key learning
3. Improvement for BCM2 dump tool
4. Support write immodata for Audi RB8 type
5. Bgufix for customer request in diagnostic unit
6. Bugfix for MED17/EDC17 online decode PIN/CS
7. Bugfix

===== BMW V5.3.0 =====
1. Improvement for FEM/BDC key learn
1. Bugfix

===== Porsche V5.3.0 =====
1. Support porsche 911,997, boxster 987 keylearn: Menu->Key Learn->Transponder Key – 911,987, Boxster 987, Cayman
2. Bugfix

===== PSA V5.3.0 =====
1. Bugfix

===== Transponder Programmer V5.3.0 =====
1. Immobilizer data tool: bugfix for Asia->Suzuki->SX4->2006 93C56
2. Immobilizer data tool: bugfix for America->Jeep->Laredo->2008 uPD70F
3. Immobilizer data tool: bugfix for Euro->Fiat->Grand Punto->93C86
4. Bugfix

===== Copy 48 (96 bits) V5.3.0 =====
1. Bugfix

===== J2534 V5.3.0 =====
1. Bugfix

===== Online Upate Tool V5.3.0 =====
1. Bugfix

===== Quick Start V5.3.0 =====
1. Bugfix

VVDI2 latest software version V5.2.5 update
*** 2018-02-02
*** Require firmware V5.2.5
===== VAG V5.2.5 =====
1. Bugfix for prepare dealer in MQB platform
2. Bugfix

===== BMW V5.2.5 =====
1. Bugfix

===== Porsche V5.2.5 =====
1. Bugfix

===== PSA V5.2.5 =====
1. Bugfix

===== Transponder Programmer V5.2.5 =====
1. Support prepare remote via online
2. Immobilizer data tool: bugfix for Asia->Hyundai->Getz->2007-(95040,95160)
3. Immobilizer data tool: bugfix for Euro->MAN->TGA->25128(25256)
4. Bugfix

===== Copy 48 (96 bits) V5.2.5 =====
1. Release a new tool for copy 48(96 bits). This tool can run only with copy 48(96 bits) license.

===== J2534 V5.2.5 =====
1. Bugfix

===== Online Upate Tool V5.2.5 =====
1. Bugfix

===== Quick Start V5.2.5 =====
1. Bugfix

VVDI2 Latest Software Version V5.2.1 Update:
2018-01-23
Require firmware V5.2.0
===== VAG V5.2.1 =====
1. Bugfix for access some MQB(Continental/VDO) instrument
2. Improvement for prepare MQB dealer key: Now we support all original blank key or MQB key made by VVDI
3. Improement for MQB key learning
4. Improvement for autodetct in IMMO4 system
5. Bugfix for spanish language
6. Bugfix

===== BMW V5.2.1 =====
1. Bugfix for spanish language
2. Bugfix

===== Porsche V5.2.1 =====
1. Bugfix for spanish language
2. Bugfix

===== PSA V5.2.1 =====
1. Bugfix for spanish language
2. Bugfix

===== Transponder Programmer V5.2.1 =====
1. Bugfix for spanish language
2. Bugfix

===== J2534 V5.2.1 =====
1. Bugfix for spanish language
2. Bugfix

===== Online Upate Tool V5.2.1 =====
1. Bugfix for spanish language
2. Bugfix

===== Quick Start V5.2.1 =====
1. Bugfix

VVDI2 latest software version V5.2.0 update
*** 2018-01-19
*** Require firmware V5.2.0
===== VAG V5.2.0 =====
1. Improvement MQB NEC35xx immobilizer/KM function, support following cars:
Audi A3/S3 2014+
Audi Q2
VW Golf7
VW Polo(MQB)
VW Tiguan II
VW Touran II
VW crafter 2017+
VW Passat B8 without virtual cockpit
Skoda Octavia III 2014.07+
Skoda Rapid 2015.06+
Skoda Kodiaq
Skoda Superb III
Seat Ibiza/Ateca/Toledo 2015.06+

Attention 1: This type only support cars with cluster Continental/VDO. JCI type and virtual cockpit was not include
Attention 2: Improvement for prepare dealer key: support original blank key and MQB key made by VVDI
Attention 3: MQB Immobilizer function require extra license. Customer who have copy 48 (96 bit) license will get MQB license for free
Attention 4: Improvement for key learn function
Attention 5: Bugfix for access some MQB instrument
2. Improvement for autodetct in IMMO4 system
3. Add spanish language
4. Bugfix

===== BMW V5.2.0 =====
1. Improvement for read ISN from MSx8x ECU, require VVDI2 database file verison V1.0.0
2. Improvement for load MEV17xx EEPROM dump
3. Support change second hand FEM/BDC ISN and make original key working
4. Add spanish language
5. Bugfix

===== Porsche V5.2.0 =====
1. Add spanish language
2. Bugfix
