Autel MaxiDiag MD808 PRO Diagnostic Tool Full Systems with Special Function for EPB/ Oil Reset/ DPF/SAS and BMS

Autel MaxiDiag MD808 PRO Diagnostic Tool Full Systems with Special Function for EPB/ Oil Reset/ DPF/SAS and BMS Life-time Online Update

The MaxiDiag MD808 Pro Combination of MaxiCheck Pro and MD802 all system model

What is the advantages of MD808 PRO compare with MD808 AND MD802?
1.MD808 PRO support all system of car, the md808 only support 4 system , and MD808 PRO is upgrade version of MD808 and MD802 , coverage more car and more systems.
2.MD808 PRO support Steering Angel Learning , DPF functions , and Battery Registration and reset . Throttle matching function
The MD808 and MD802 didn’t have these functions

The MaxiDiag MD808 Pro is built to take your diagnostic experience to a whole new level. Loaded with oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle sensor relearn and diesel particulate filter regeneration functions, MD808 Pro can access ALL available modules for the best diagnosis operations. With all that enclosed in a 4-inch hand-held device, there is no better multifunctional scan tool on the market.

Support Multi Language :English, French ,Spanish ,German ,Dutch,Swedish,Polish ,Korean ,Japanese, Italian

Features:
1. Support Read/Clear Codes and Live Data functions for ALL systems
2. Read and clear trouble codes, control and test BMS/Oil Reset/ SRS/EPB/DPF systems
3. Support oil service reset
4. Support battery registration and reset
5. Diesel particulate service including forced regeneration
6. Reset steering angle sensor (SAS) functionality
7. Relearn parking brake pad after replacement
8. Reset service mileage and service intervals
9. Turn off ECU brake warning light
10. Perform O2 monitor, on-board monitor, I/M readiness and component testing
11. Print diagnostic reports via PC connection
12. Global OBD II coverage for U.S. domestic, Asian and European makes and models
13. All OBD II protocols, all 10 test modes and enhanced OBD II mode 6 support
14. Update: Free Software updating for lifetime

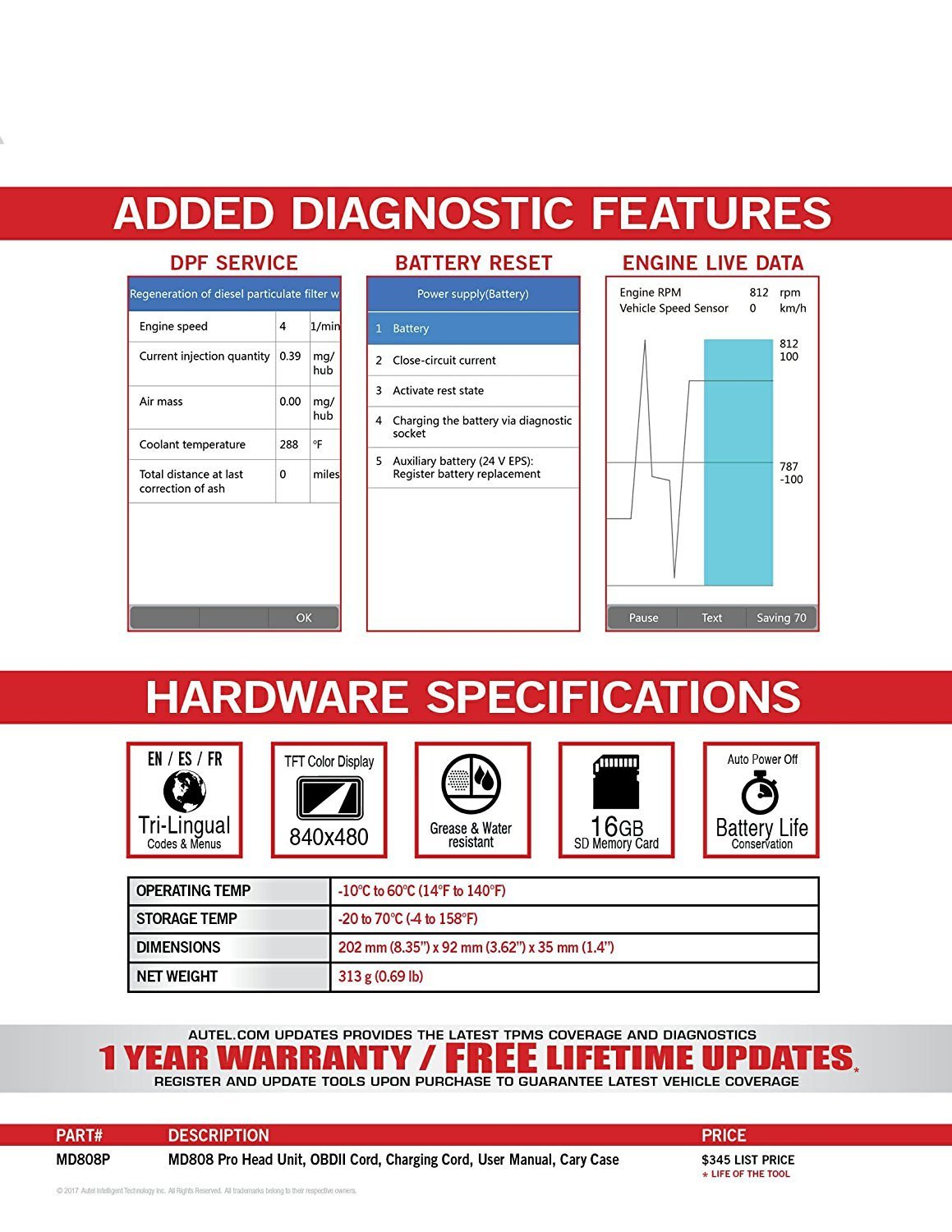

Specifications:
Processor ARM® Thumb® Processor (400 MHz)
Memory 32MB, 166 MHz
Display 4.0 inch LCD with 800×480 resolution
Connectivity Mini USB: 2.0 Micro SD Card (16GB)
Power Consumption 1.7 W
Operating Temperature -10°C to 60°C (14°F to 140°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Operating Humidity 5% – 95% non-condensing
Housing Strong plastic housing with protective rubber boot

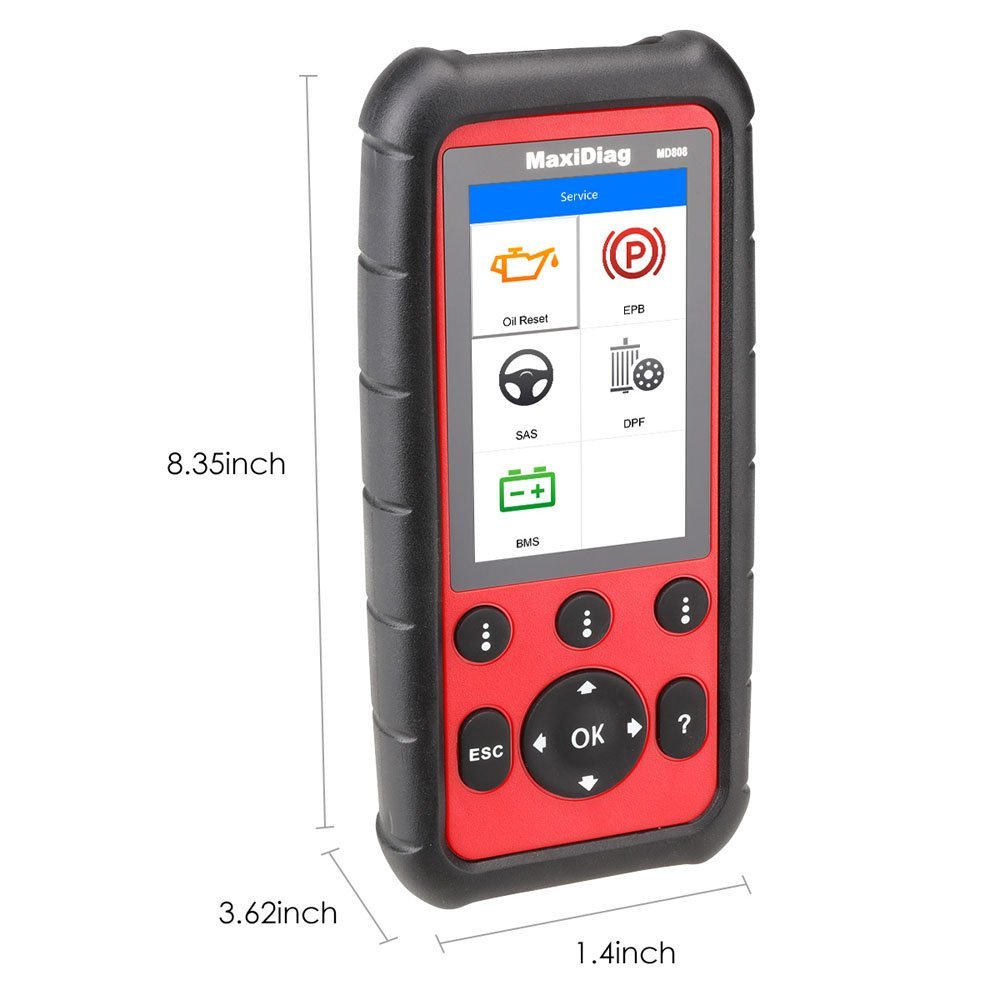

Dimensions (W x H x D) 202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”)
Weight 313 g (0.69 lb.)

Autel MD808 Pro FAQs:
Q: Does it read TCC transmission data on GM vehicles?
A: yes it does, can read slip count, shift time, temp, and tons of other things

Q: Does it include ALL SYSTEM as in MD802 All systems , or only 4 systems ?
A: the MD808 PRO is a combo of the Maxicheck Pro and the MD802 , the regular MD808 is 4 systems

Q: What is a component test ??
A: it initiates a leak test for the EVAP system

Feedback: SAS in the Scan menu is steering angle sensor, not airbag SRS, SRS is found elsewhere in the tool. Additional vehicles supported not shown in the video include Opel, Peugeot, Porsche, Renault, SEAT, SKODA, Saab, Smart, Sprinter, VW, and Vauxhall
Feedback: That looks like quite a good tool for the price! If I could afford something like that at the moment and didn’t already have a scan tool, I’d be all over that.

Q: Can this read oil or transmission temperature?
A: I found transmission temp, might read oil temp on cars that support it, i only found coolant and air temp otherwise.

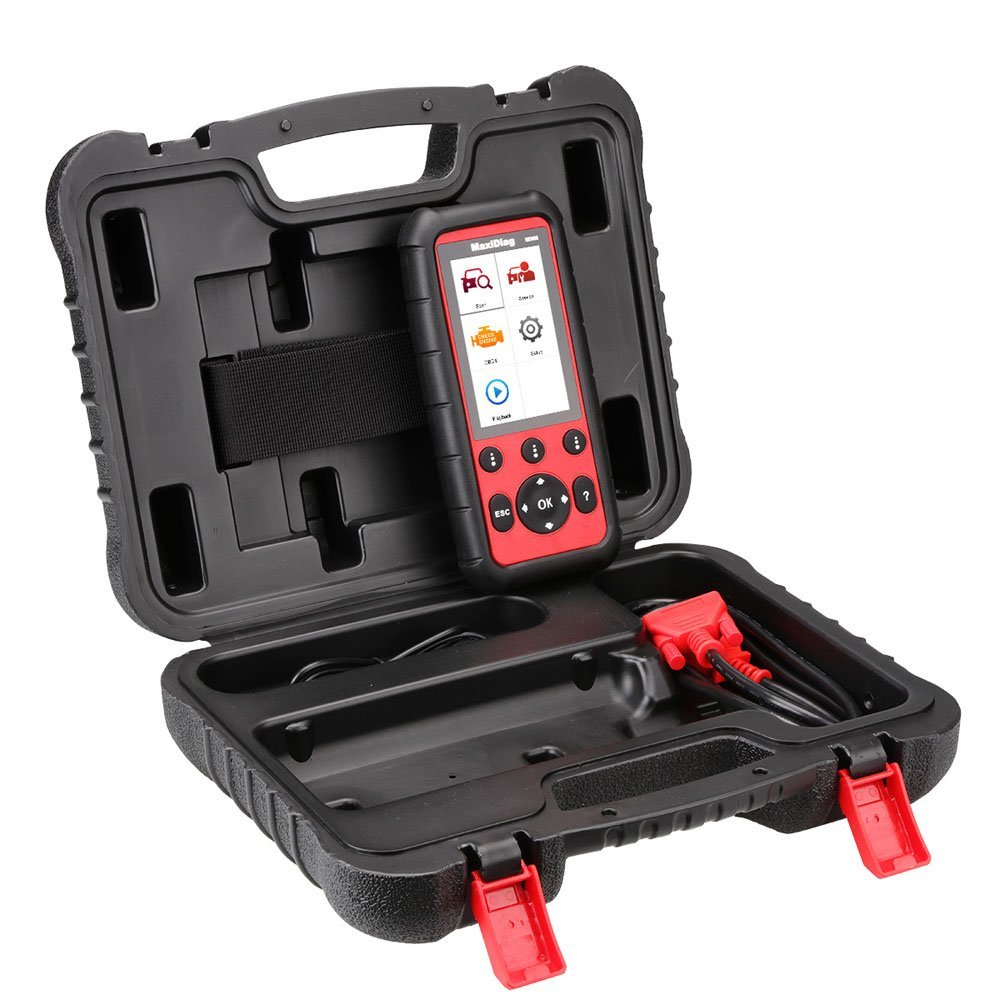

Accessories:
1.User Manual
2.Main Cable
3.Micro SD Card
4.Quick Guide
5.Carry Case
