XTOOL X-100 PAD2 Special Functions Plus Xtool X100C for iOS and Android Auto Key Programmer
748.00$
X-100 PAD 2 is a tablet with the latest technologies to perform key programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, ste
XTOOL X-100 PAD2 Special Functions Plus Xtool X100C for iOS and Android Auto Key Programmer

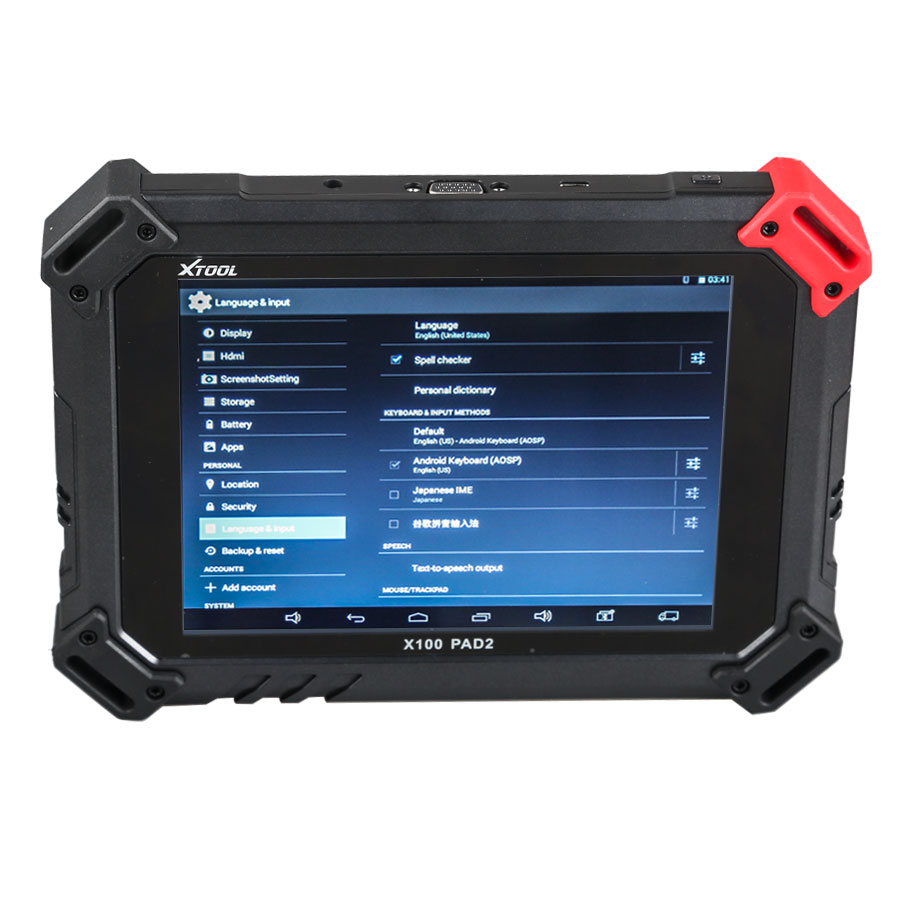

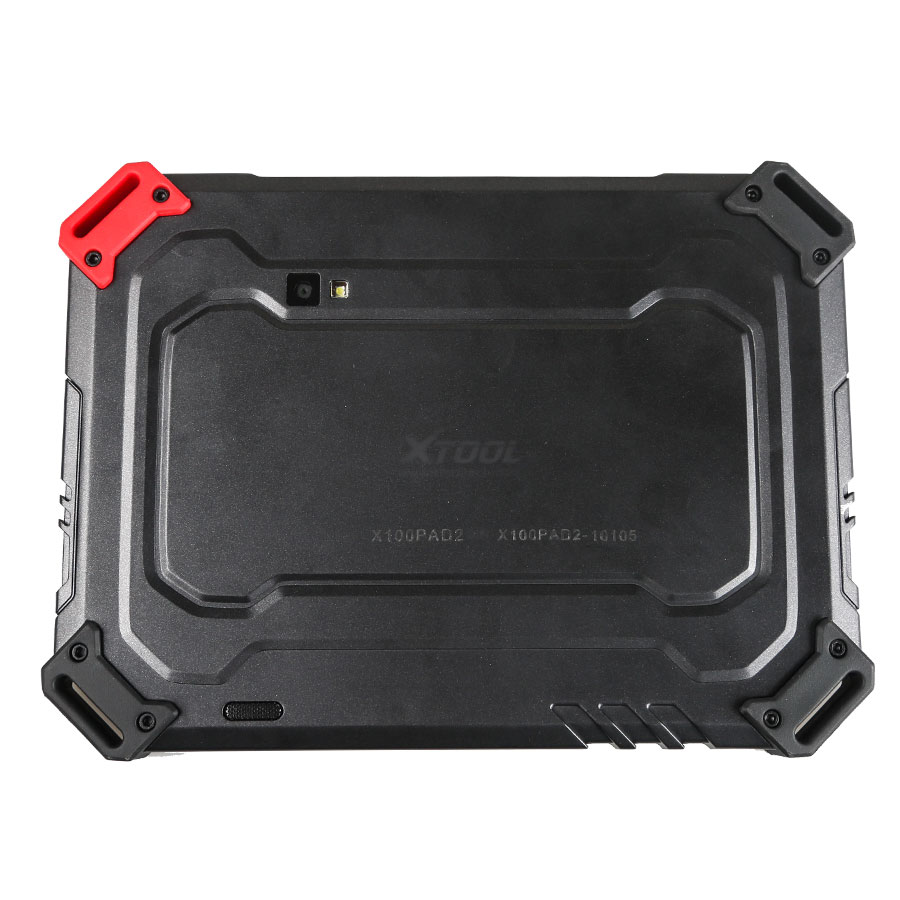

X-100 PAD 2 is a tablet with the latest technologies to perform key programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis. Xtool X100C can work with iOS and Android System by Bluetooth Connection, easier to operate, which is also a 2 in 1 auto key programmer and pin code reader for Ford, Mazda, Peugeot and Citroen.

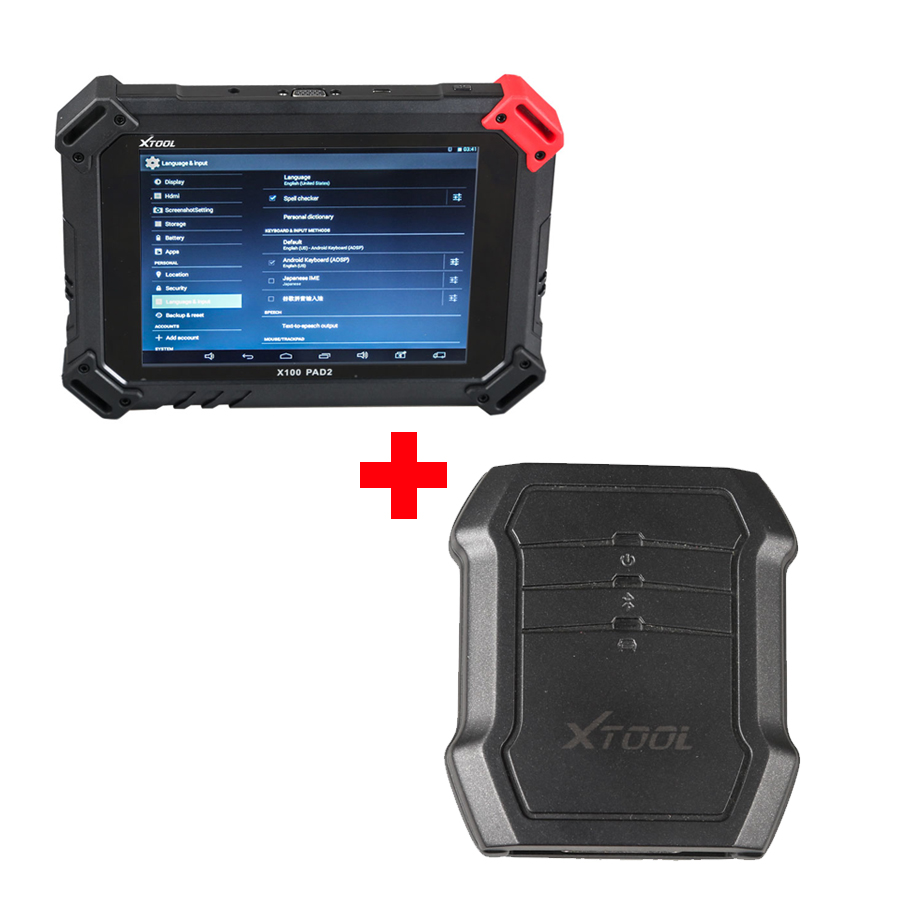

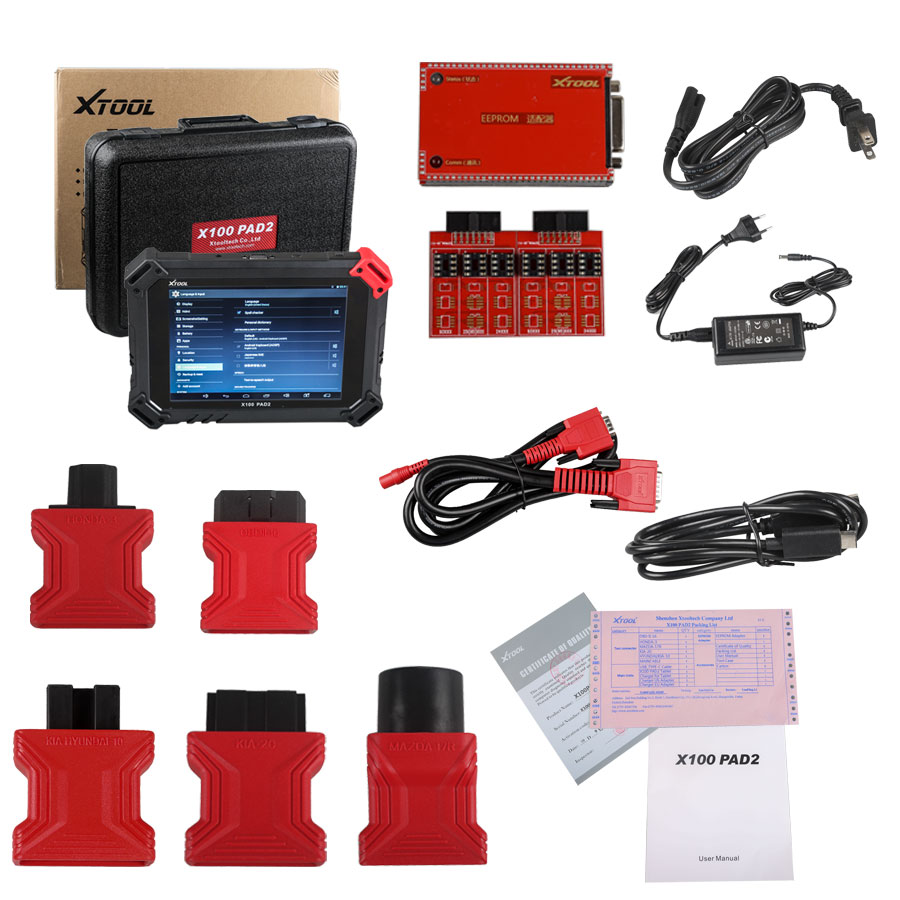

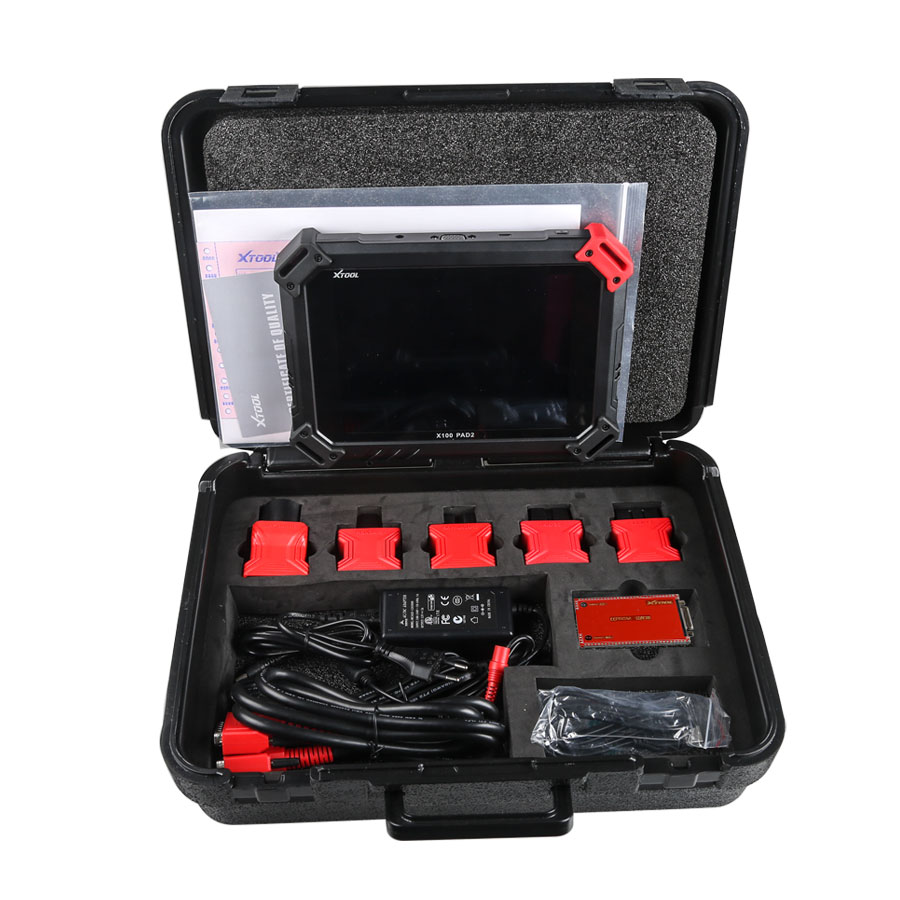

This is package offer for Xtool X100 PAD2 with Xtool X100C for iOS and Android, which save you a lot to buy together.
X-100 PAD 2 Features:
Key Programming
Oil Reset/Engine oil light reset
Odometer Adjustment
Tire Pressure Warning Light Reset
Timing belt light reset (Manual Operation)
EPB Electrical Parking Brake Adaptation
TPS Throttle Body Adaptation
Steering Angle Calibration
Battery Reset
DPF PIN Code Reading
Hexadcimal editor(Win Hex)
OBDII Diagnosis
Support the latest vehicles with CAN BUS and UDS protocol
Update Via WIFI (always equip your device with the latest software)
Specifications:
| Operating System: | Android 4.4.4 |
| Memory: | 1GB RAM, 16GB Flash |
| CPU | Quad Core, 1.6 GHz |
| Display | 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution |
| Sensors: | Gravity Sensor, Light Sensor |
| Input/Output: | Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port |
| Battery: | 4000mAh, 7.4V |
| WIFI | WIFI 2.4Ghz |
| Bluetooth | 100 Meters |
| Power Voltage: | 12V |
| Power Consumption: | 29.6W |
| Operating Temperature: | -20 to 50℃(-4 to 126℉) |
| Humidity: | <90% |
| Dimension: | (L*W*H): 240*177*30mm |

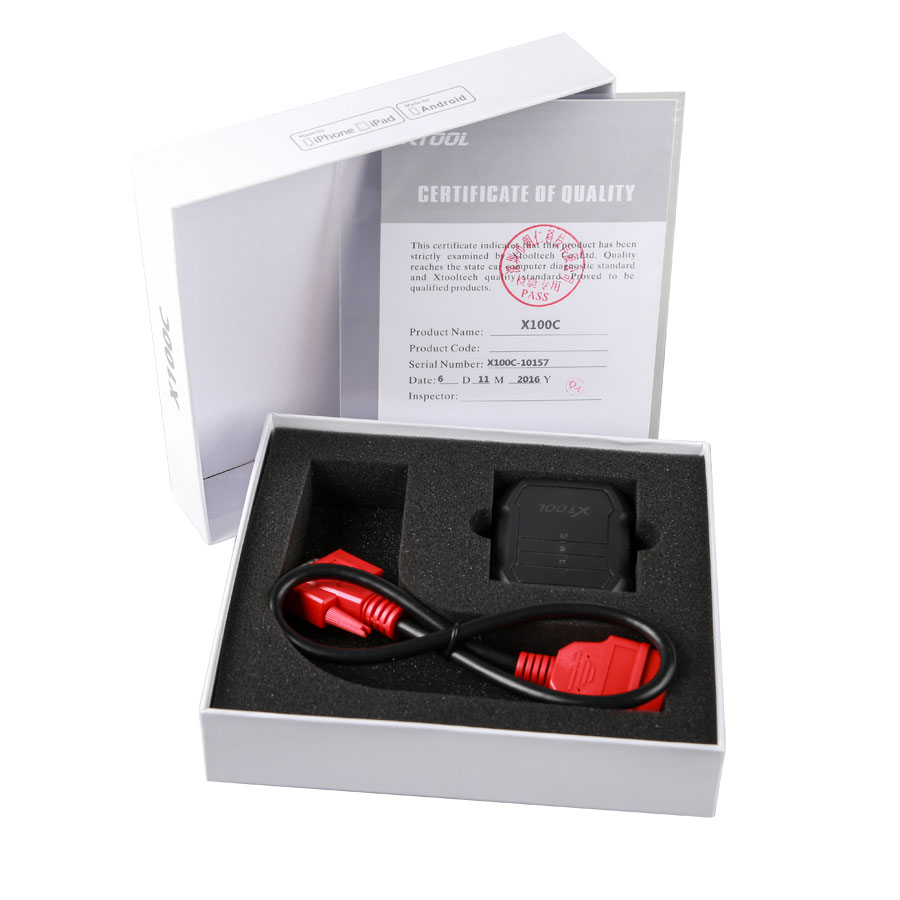

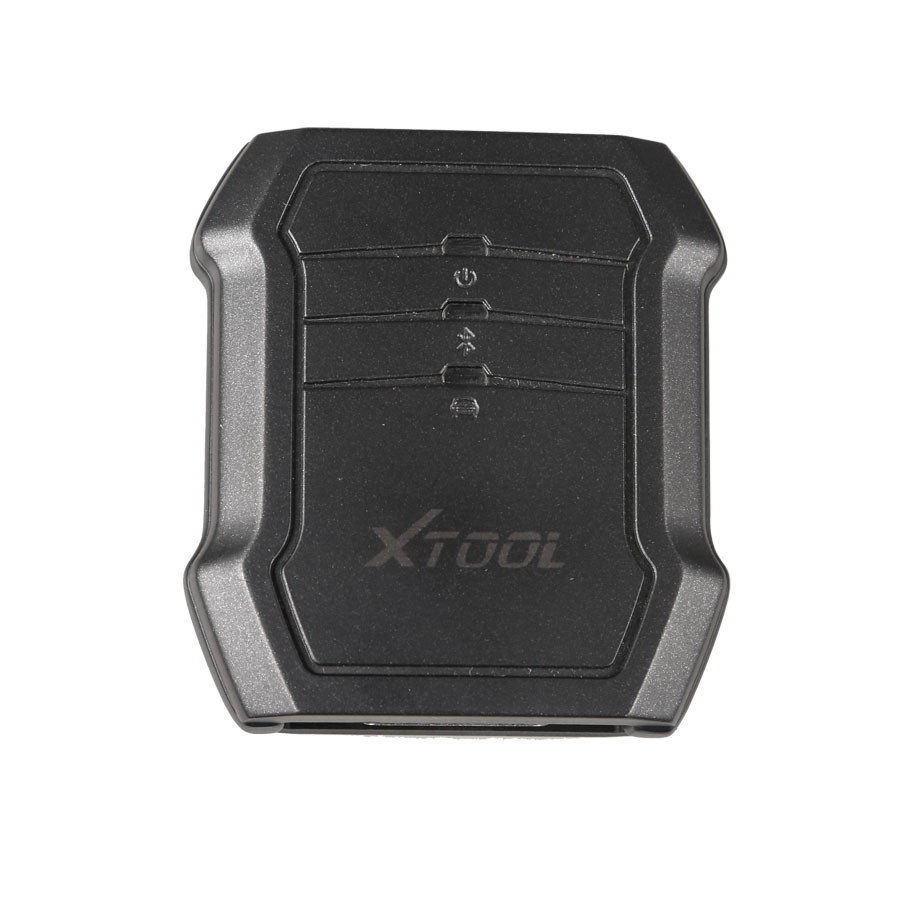

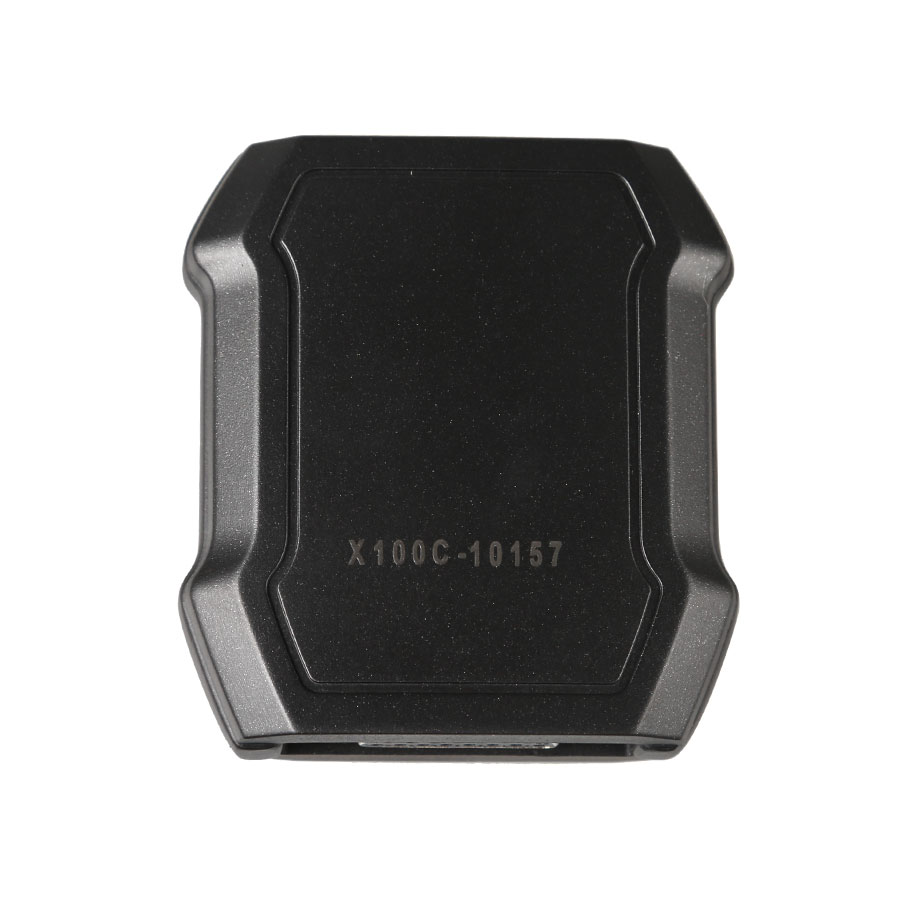

Xtool X100 C Features:
Vehicle Compatibility: X-100 C works with four brand cars, they are Ford, Mazda, Peugeot, Citroen and DS
Bluetooth auto-reconnection: Once the Bluetooth is paired, you don’t need to input the code to pair with your phone anymore.
The device will reconnect with your phone automatically.
Connection: Connection via Bluetooth (Android and IOS)
Free update: Download latest XtoolC App with new features from Google Play or Apple Store.
X100C reads PIN CODE via dongle and does key programming via OBD2 socket with your cell phone.
Language: English, more language will be added.
Here is part of X100C pin code reading function list, more models will be added one by one:
| Auto Maker | Model | Year | Chip Type | Remarks |
| Mazda | CX-3 | 2015+ | smart PCF7953 ID46 | |
| Mazda | CX-3 | 2012+ | smart PCF7953 ID46 | |
| Mazda | 2 | 2014+ | smart PCF7953 ID46 | |
| Mazda | 3 | 2013+ | smart PCF7953 ID46 | |
| Mazda | 6 | 2013+ | smart PCF7953 ID46 | |
| Mazda | 2 | 2002 – 2013 | 4D ID63 | |
| Mazda | 3 | 2002 – 2012 | 4D ID63 | |
| Mazda | 5 | 2002 – 2012 | 4D ID63 | |
| Mazda | 6 | 2014 – 2012 | 4D ID63 | |
| Ford | Focus3/Cmax | 2010+ – | DST80+ | mechanical |
| Ford | Focus3/Cmax | 2010+ – | DST80+ | |
| Ford | Kuga2 | 2014+ – | DST80+ | mechanical |
| Ford | Kuga2 | 2014+ – | DST80+ | |
| Ford | MondeoMK4/SMax facelift | 2010+ – | DST80+ | mechanical |
| Ford | MondeoMK4/SMax facelift | 2010+ – | DST80+ | |
| Ford | Fiesta | 2014+ – | DST80+ | only mechanical |
| Ford | Bmax | only mechanical | ||
| Ford | Custom | only mechanical, not fully supported | ||
| Ford | Fiesta | |||
| Ford | Bmax | |||
| Ford | Ecosport | |||
| Peugeot | 1007 | |||
| Peugeot | 206 | |||
| Peugeot | 207 | |||
| Peugeot | 208 | |||
| Peugeot | 2008 | |||
| Peugeot | 301 | |||
| Peugeot | 306 | |||
| Peugeot | 307 | |||
| Peugeot | 308 | |||
| Peugeot | 3008 | |||
| Peugeot | 406 | |||
| Peugeot | 407 | |||
| Peugeot | 4007 | |||
| Peugeot | 508 | |||
| Peugeot | 5008 | |||
| Peugeot | 607 | |||
| Peugeot | 806 | |||
| Peugeot | 807 | |||
| Peugeot | Bipper | |||
| Peugeot | Expert | |||
| Peugeot | Partner | |||
| Citroen | C2 | |||
| Citroen | C3 | |||
| Citroen |
